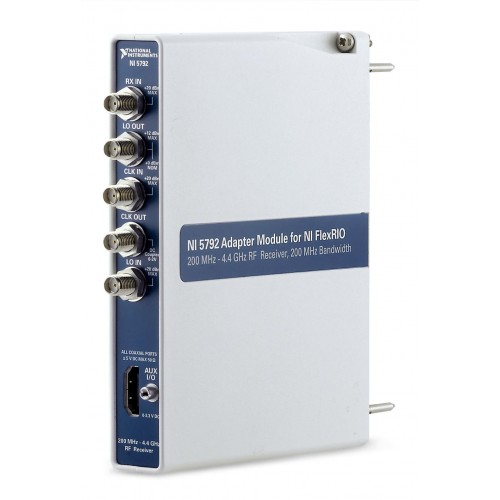

National Instruments NI-5792 RF receiver adapter module
1 image: Click to enlarge
National Instruments · NI FlexRIO

NI-5792

The NI-5792 is a FlexRIO RF receiver adapter with 200 MHz bandwidth, designed for use with an NI FlexRIO FPGA module.

ManufacturerNational Instruments
ModelNI-5792
Part Number152889-01L
Product TypeRF receiver adapter module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5792

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
FunctionRF receiver
PlatformFlexRIO adapter module
RF coverage200 MHz to 4.4 GHz
Instantaneous bandwidth200 MHz (6 dB)
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

NI-5792 denotes the adapter alone; NI-5792R denotes the adapter combined with a FlexRIO FPGA module.

  • Programmable attenuators and selectable receive filters.
  • LO input and output for oscillator sharing.
  • Front-panel clock input and output.
Verified specifications

Technical data

Verified product specifications.

Receiver frequency range200 MHz to 4.4 GHz
Instantaneous bandwidth (6 dB)200 MHz
ADC resolution14 bit
ADC sample rate250 MS/s
RX IN maximum input power+20 dBm
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FlexRIO

FPGA-based platform

NI-5792

RF receiver adapter

FPGA requirement

Manual revision 373947B specifies NI PXIe-796xR modules only.

The adapter is not a standalone receiver.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 5792R User Manual and SpecificationsUser Manual And Specifications · download.ni.com
Open →
NI-5792 Product CertificationsProduct Certifications · ni.com
Open →
Connector pinouts, CLIP configuration, and streaming examplesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-5792 generate RF signals?

It is an RF receiver adapter, not an RF generator.

Does its two-channel ADC mean two RF inputs?

No. One RF receive channel provides I and Q data.
