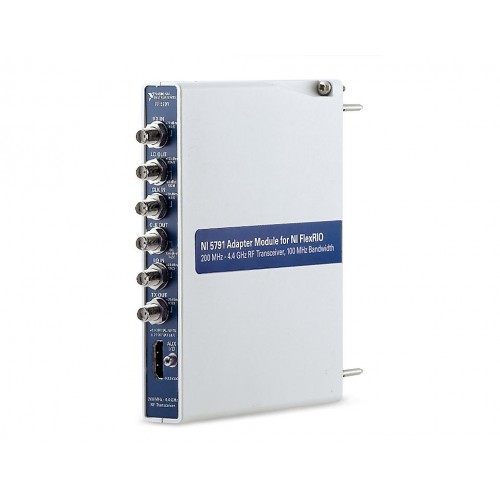

NI (National Instruments) NI-5791 100 MHz Bandwidth, 200 MHz to 4.4 GHz, RF Adapter Module for FlexRIO

1 image: Click to enlarge

NI (National Instruments) · FlexRIO

NI-5791

The NI-5791 is an RF adapter module for FlexRIO with 100 MHz instantaneous bandwidth for both RF acquisition and generation and frequency coverage from 200 MHz to 4.4 GHz. Its listed NI part number is 782510-01.

ManufacturerNI (National Instruments)

ModelNI-5791

Part Number782510-01

Product Type100 MHz Bandwidth, 200 MHz to 4.4 GHz, RF Adapter Module for FlexRIO

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5791

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Input Noise Density-148 dBm/Hz

RF Analyzer Instantaneous Bandwidth100 MHz

RF Generator Instantaneous Bandwidth100 MHz

Maximum Input Power20 dBm

Maximum Output Power8 dBm

RF Generator Frequency Range200 MHz to 4.4 GHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-5791 provides RF acquisition and generation within the FlexRIO platform, with continuous frequency coverage from 200 MHz to 4.4 GHz and 100 MHz instantaneous bandwidth in each direction.

Its single-stage, direct-conversion architecture provides high bandwidth in a FlexRIO adapter-module form factor. The onboard synthesizer serves as the local oscillator (LO), setting the center frequency for acquisition and generation; the LO can also be exported to other modules for multiple-input, multiple-output (MIMO) synchronization.

RF adapter-module format for the NI FlexRIO platform.
100 MHz instantaneous bandwidth for both RF analysis and RF generation.
Continuous frequency coverage from 200 MHz to 4.4 GHz.
Single-stage, direct-conversion RF architecture.
Onboard local oscillator with export capability for MIMO synchronization.

Verified specifications

Technical data

Verified product specifications.

Input Noise Density	-148 dBm/Hz
RF Analyzer Instantaneous Bandwidth	100 MHz
RF Generator Instantaneous Bandwidth	100 MHz
Maximum Input Power	20 dBm
Maximum Output Power	8 dBm
RF Generator Frequency Range	200 MHz to 4.4 GHz
NI part numbers	782510-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

FlexRIO

Interface

NI-5791

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI-5791?

The NI-5791 is an RF adapter module for FlexRIO with 100 MHz instantaneous bandwidth for acquisition and generation and frequency coverage from 200 MHz to 4.4 GHz.

What NI part number identifies this module?

The listed NI part number is 782510-01.

Does the NI-5791 support both RF acquisition and generation?

Yes. The listed instantaneous bandwidth is 100 MHz for the RF analyzer and 100 MHz for the RF generator.

Can the NI-5791 export its local oscillator?

Yes. Its onboard synthesizer acts as the local oscillator and can be exported to other modules for MIMO synchronization. Confirm the specific system configuration and connection requirements in NI documentation.
