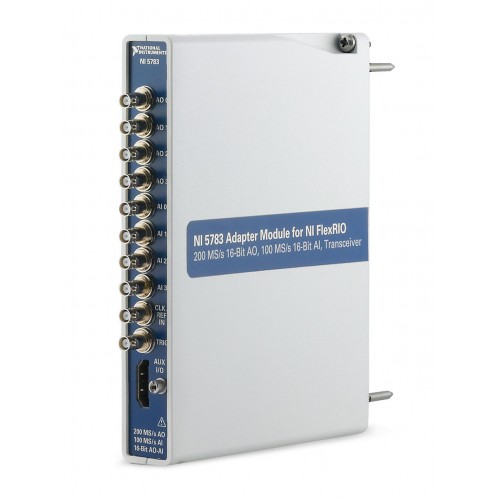

NI-5783

The NI-5783 is a FlexRIO transceiver adapter module with four analog input channels and four analog output channels. Listed NI part numbers are 784364-02 and 784364-01.

ManufacturerNI (National Instruments)

ModelNI-5783

Part Number784364-02 · 784364-01

Product Type40 MHz Bandwidth Transceiver Adapter Module for FlexRIO

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5783

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

IF Transceiver Maximum Bandwidth175 MHz

Input CouplingDC

Analog Input Sampling Rate100 MS/s

Maximum Analog Output Update Rate400 MS/s

Number of Analog Input Channels4

Number of Analog Output Channels4

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-5783 provides analog input and output functionality within the NI FlexRIO platform. Its four input channels have a listed sampling rate of 100 MS/s, while its four output channels have a listed maximum update rate of 400 MS/s.

For system integration, consult the NI-5783 getting-started guide and specifications. Confirm the supported FPGA hardware and distinguish the applicable input, output and transceiver bandwidth specifications before selecting a configuration.

FlexRIO transceiver adapter module.
Four analog input channels with a listed sampling rate of 100 MS/s.
Four analog output channels with a listed maximum update rate of 400 MS/s.
DC-coupled analog inputs.

Verified specifications

Technical data

Verified product specifications.

IF Transceiver Maximum Bandwidth	175 MHz
Input Coupling	DC
Analog Input Sampling Rate	100 MS/s
Maximum Analog Output Update Rate	400 MS/s
Number of Analog Input Channels	4
Number of Analog Output Channels	4
Compatible FPGA	Kintex-7
NI part numbers	784364-02, 784364-01
