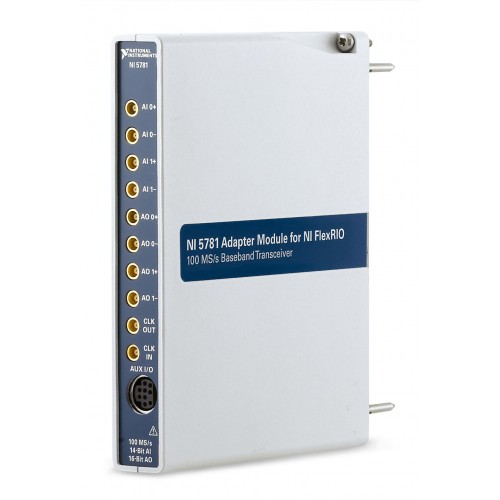

The NI-5781 is a 100 MS/s baseband transceiver with 14-bit analog inputs and 16-bit analog outputs for NI FlexRIO systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The adapter connects to a separate NI FlexRIO FPGA module; together they form the NI 5781R.
Verified product specifications.
| Maximum AI sample rate | 100 MS/s |
|---|---|
| Maximum AO data rate | 100 MS/s |
| Maximum DAC sample rate | 400 with interpolation MS/s |
| Interpolation factors | 1×, 2×, 4× (default), 8× |
| AI/AO filters | Fixed seventh-order elliptical; typical |
| AI/AO baseband bandwidth | 40 per I/Q channel, −3 dB; typical MHz |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
FPGA platform
Analog adapter
The guide specifies LabVIEW, LabVIEW FPGA, NI-RIO, and NI FlexRIO Adapter Module Support.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It requires a separate NI FlexRIO FPGA module.
No. Output data is limited to 100 MS/s; interpolation enables DAC sampling up to 400 MS/s.
