NI (National Instruments) NI-5772 1.6 GS/s, 12-Bit, 2.27 GHz Bandwidth, 2-Channel Digitizer Adapter Module for FlexRIO

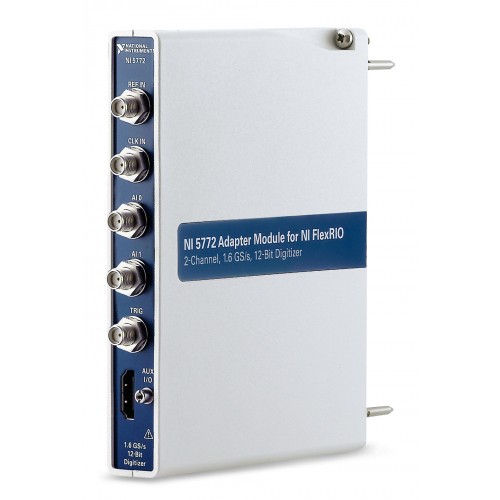

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

NI-5772

The NI-5772 is a two-channel digitizer adapter module for FlexRIO, with 12-bit resolution, a maximum sample rate of 1.6 GS/s and a listed bandwidth of 2.27 GHz.

ManufacturerNI (National Instruments)

ModelNI-5772

Part Number782097-01 · 782097-02

Product Type1.6 GS/s, 12-Bit, 2.27 GHz Bandwidth, 2-Channel Digitizer Adapter Module for FlexRIO

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5772

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Compatible FPGAVirtex-5, Kintex-7

Analog Input Resolution12 bits

Maximum Sample Rate1.6 GS/s

Voltage Input Channels2

Supported Hardware PlatformComputer-Based Device

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-5772 is a FlexRIO digitizer adapter module with A/D converters for real-time processing and streaming of analog data. It provides two voltage input channels with 12-bit resolution and a maximum sample rate of 1.6 GS/s.

The catalog lists part numbers 782097-01 and 782097-02 for AC- and DC-coupled versions respectively. Confirm the exact part number and coupling variant when matching the module to a measurement system.

Two voltage input channels.
12-bit analog input resolution.
Maximum sample rate of 1.6 GS/s.
FlexRIO adapter architecture for real-time analog data processing and streaming.
Listed compatible FPGA families include Virtex-5 and Kintex-7.

Verified specifications

Technical data

Verified product specifications.

Compatible FPGA	Virtex-5, Kintex-7
Analog Input Resolution	12 bits
Maximum Sample Rate	1.6 GS/s
Number of Voltage Input Channels	2
Supported Hardware Platform	Computer-Based Device
Enclosed	Yes
NI part numbers	782097-01, 782097-02
