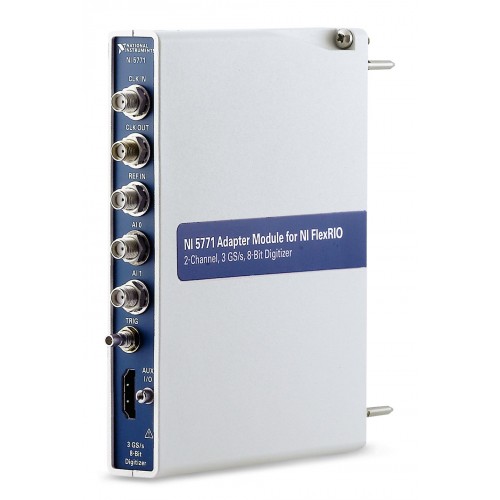

NI (National Instruments) NI-5771 3 GS/s, 8-Bit, 900 MHz Bandwidth, 2-Channel Digitizer Adapter Module for FlexRIO
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

NI-5771

The NI-5771 is a two-channel, DC-coupled digitizer adapter module for FlexRIO with 8-bit resolution and 900 MHz analog input bandwidth. It supports simultaneous sampling at 1.5 GS/s or single-channel sampling at up to 3 GS/s.

ManufacturerNI (National Instruments)
ModelNI-5771
Part Number781419-02
Product Type3 GS/s, 8-Bit, 900 MHz Bandwidth, 2-Channel Digitizer Adapter Module for FlexRIO
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5771

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Input Bandwidth900 MHz
Compatible FPGAVirtex-5, Kintex-7
Analog Input CouplingDC
Analog Input Voltage Range-0.675 V to 0.675 V
Analog Input Resolution8 bits
Maximum Sample Rate3 GS/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-5771 provides two voltage inputs in an enclosed FlexRIO digitizer adapter module. Its DC-coupled analog inputs combine 8-bit conversion with 900 MHz bandwidth and a voltage range of -0.675 V to 0.675 V.

  • Two voltage input channels with simultaneous sampling at 1.5 GS/s.
  • Single-channel sampling at up to 3 GS/s.
  • 900 MHz analog input bandwidth and 8-bit resolution.
  • DC-coupled inputs with a -0.675 V to 0.675 V input range.
  • Enclosed digitizer adapter module for the FlexRIO ecosystem.
Verified specifications

Technical data

Verified product specifications.

Analog Input Bandwidth900 MHz
Compatible FPGAVirtex-5, Kintex-7
Analog Input CouplingDC
Analog Input Voltage Range-0.675 V to 0.675 V
Analog Input Resolution8 bits
Maximum Sample Rate3 GS/s
Number of Voltage Input Channels2
Supported Hardware PlatformComputer-Based Device
EnclosedYes
NI part numbers781419-02
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

NI-5771

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-5771 sample both inputs at 3 GS/s?

No. The supplied structured product data specifies simultaneous sampling at 1.5 GS/s or single-channel sampling at 3 GS/s.

What are the NI-5771 input bandwidth and resolution?

The NI-5771 has 900 MHz analog input bandwidth and 8-bit analog input resolution.

What input range and coupling does the NI-5771 provide?

Its analog inputs are DC-coupled with a voltage range of -0.675 V to 0.675 V.

Which FPGA families are listed for the NI-5771?

Virtex-5 and Kintex-7 are listed as compatible FPGA families. Confirm support for the specific FlexRIO FPGA module and software configuration before integration.
