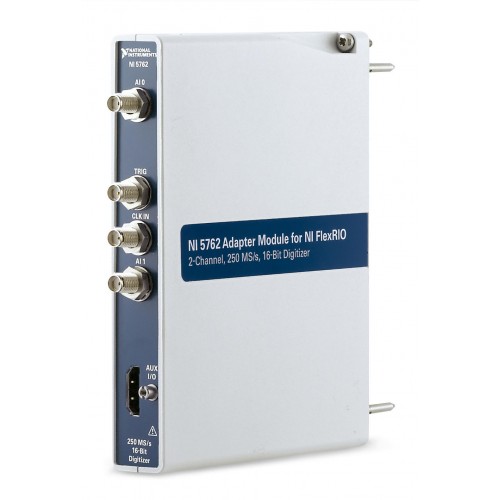

NI (National Instruments) NI-5762 250 MS/s, 16-Bit, 100 MHz Bandwidth, 2-Channel Digitizer Adapter Module for FlexRIO

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

NI-5762

The NI-5762 is a FlexRIO digitizer adapter module with two voltage input channels, 16-bit resolution and a maximum sample rate of 250 MS/s. The catalog lists 100 MHz analog input bandwidth and AC input coupling.

ManufacturerNI (National Instruments)

ModelNI-5762

Part Number781749-02 · 781749-01

Product Type250 MS/s, 16-Bit, 100 MHz Bandwidth, 2-Channel Digitizer Adapter Module for FlexRIO

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5762

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Bandwidth100 MHz

Compatible FPGAVirtex-5, Kintex-7

Analog Input CouplingAC

Analog Input Resolution16 bits

Maximum Sample Rate250 MS/s

Voltage Input Channels2

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-5762 provides two-channel analog digitization within the NI FlexRIO ecosystem. Its 16-bit conversion and maximum sample rate of 250 MS/s support acquisition with FPGA-based processing.

The module has AC-coupled analog inputs and an enclosed construction. Two part numbers are listed for the model, so confirm the required filtering variant and host configuration before integration.

Two voltage input channels for analog acquisition.
Maximum sample rate of 250 MS/s with 16-bit analog input resolution.
Listed analog input bandwidth of 100 MHz.
AC-coupled analog inputs.
FlexRIO adapter architecture with listed Virtex-5 and Kintex-7 FPGA support.

Verified specifications

Technical data

Verified product specifications.

Analog Input Bandwidth	100 MHz
Compatible FPGA	Virtex-5, Kintex-7
Analog Input Coupling	AC
Analog Input Resolution	16 bits
Maximum Sample Rate	250 MS/s
Number of Voltage Input Channels	2
Supported Hardware Platform	Computer-Based Device
Enclosed	Yes
NI part numbers	781749-02, 781749-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

NI-5762

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What are the NI-5762 part numbers?

The supplied structured catalog data lists 781749-02 as the unfiltered version and 781749-01 as the version with a 100 MHz elliptic filter. Confirm the part number when selecting the required filtering configuration.

How many input channels does the NI-5762 have?

The NI-5762 has two voltage input channels with AC coupling.

What are the NI-5762 maximum sample rate and resolution?

The maximum sample rate is 250 MS/s, and the analog input resolution is 16 bits.

Which FPGA families are listed for the NI-5762?

The preserved specifications list Virtex-5 and Kintex-7. Confirm compatibility with the exact FlexRIO host module and software configuration rather than relying on FPGA family alone.
