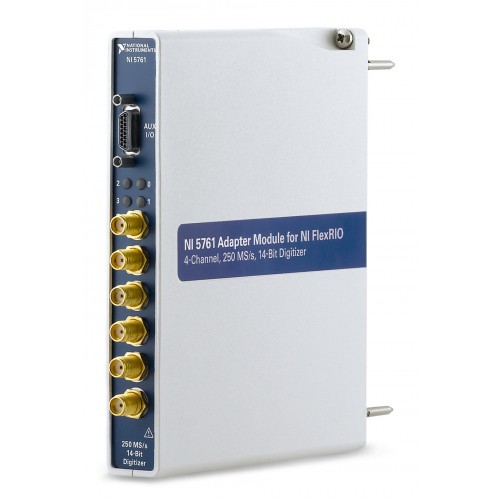

NI-5761

The NI-5761 (781287-01) is a 4-channel digitizer adapter module for FlexRIO with 14-bit resolution, a maximum sample rate of 250 MS/s and 500 MHz analog input bandwidth.

ManufacturerNI (National Instruments)

ModelNI-5761

Part Number781287-01

Product Type250 MS/s, 14-Bit, 500 MHz Bandwidth, 4-Channel Digitizer Adapter Module for FlexRIO

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5761

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Bandwidth500 MHz

Compatible FPGAVirtex-5, Kintex-7

Analog Input CouplingAC

Analog Input Voltage Range-1 V to 1 V

Analog Input Resolution14 bits

Maximum Sample Rate250 MS/s

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-5761 provides analog acquisition for a FlexRIO system. When combined with a PXI FPGA Module or Controller for FlexRIO, it simultaneously samples four channels at up to 250 MS/s with 500 MHz analog bandwidth.

Its 14-bit analog-to-digital conversion supports real-time processing and streaming of analog data. The inputs are AC-coupled with a listed voltage range of -1 V to 1 V.

Four simultaneously sampled voltage input channels.
Maximum sample rate of 250 MS/s with 14-bit resolution.
500 MHz analog input bandwidth.
AC-coupled inputs with a -1 V to 1 V voltage range.
FlexRIO integration with listed Virtex-5 and Kintex-7 FPGA options.

Verified specifications

Technical data

Verified product specifications.

Analog Input Bandwidth	500 MHz
Compatible FPGA	Virtex-5, Kintex-7
Analog Input Coupling	AC
Analog Input Voltage Range	-1 V to 1 V
Analog Input Resolution	14 bits
Maximum Sample Rate	250 MS/s
Number of Voltage Input Channels	4
Supported Hardware Platform	Computer-Based Device
Enclosed	Yes
NI part numbers	781287-01
