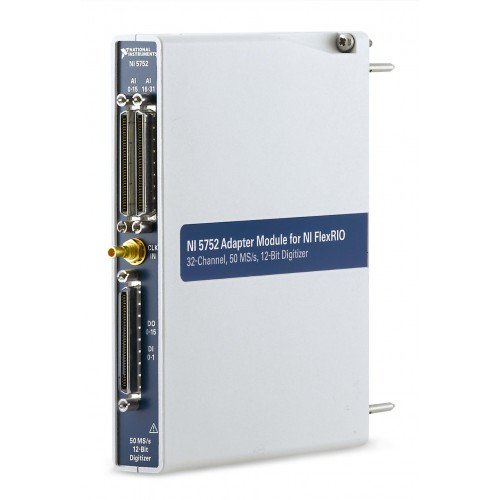

NI (National Instruments) NI-5752 50 MS/s, 12-Bit, 32-Channel Digitizer Adapter Module for FlexRIO
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

NI-5752

The NI-5752 is a 12-bit, 32-channel digitizer adapter module for FlexRIO with a maximum sample rate of 50 MS/s.

ManufacturerNI (National Instruments)
ModelNI-5752
Part Number781357-01
Product Type50 MS/s, 12-Bit, 32-Channel Digitizer Adapter Module for FlexRIO
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5752

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Input Bandwidth14 MHz
Compatible FPGAVirtex-5
Analog Input CouplingAC
Analog Input Voltage Range-1 V to 1 V
Analog Input Resolution12 bits
Maximum Sample Rate50 MS/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-5752, part number 781357-01, combines with a PXI FPGA Module for FlexRIO to simultaneously sample 32 channels at up to 50 MS/s. It is an adapter module within a FlexRIO acquisition system, rather than a standalone digitizer.

The analog inputs provide 12-bit resolution, 14 MHz bandwidth and AC coupling over a -1 V to 1 V input range. The FlexRIO architecture supports real-time processing and streaming of acquired analog data.

  • 32 voltage input channels for simultaneous acquisition.
  • Maximum sample rate of 50 MS/s with 12-bit analog input resolution.
  • 14 MHz analog input bandwidth.
  • AC-coupled analog inputs with a -1 V to 1 V input range.
  • FlexRIO adapter architecture for use with a PXI FPGA Module for FlexRIO.
Verified specifications

Technical data

Verified product specifications.

Analog Input Bandwidth14 MHz
Compatible FPGAVirtex-5
Analog Input CouplingAC
Analog Input Voltage Range-1 V to 1 V
Analog Input Resolution12 bits
Maximum Sample Rate50 MS/s
Number of Voltage Input Channels32
Supported Hardware PlatformComputer-Based Device
EnclosedYes
NI part numbers781357-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

NI-5752

This product

Compatibility

Designed to combine with a PXI FPGA Module for FlexRIO; the existing verified specification lists Virtex-5 FPGA compatibility. Exact host-module compatibility must be confirmed separately.

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the part number for the NI-5752?

The listed NI part number is 781357-01.

How many channels does the NI-5752 have?

It has 32 voltage input channels with 12-bit resolution and a maximum sample rate of 50 MS/s.

What input range and coupling does it provide?

The NI-5752 has AC-coupled analog inputs with a voltage range of -1 V to 1 V and a bandwidth of 14 MHz.

Is the NI-5752 a standalone digitizer?

No. It is a digitizer adapter module that combines with a PXI FPGA Module for FlexRIO. Confirm the exact host module and software requirements for your system.
