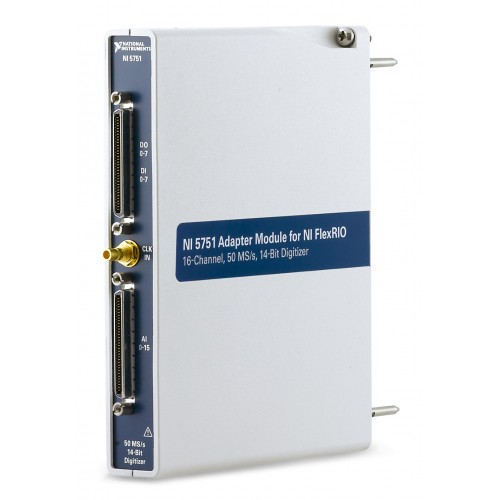

NI (National Instruments) NI-5751 50 MS/s, 14-Bit, 16-Channel Digitizer Adapter Module for FlexRIO

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

NI-5751

The NI-5751 is a 16-channel digitizer adapter module for FlexRIO with 14-bit analog input resolution and a maximum sample rate of 50 MS/s.

ManufacturerNI (National Instruments)

ModelNI-5751

Part Number781356-01

Product Type50 MS/s, 14-Bit, 16-Channel Digitizer Adapter Module for FlexRIO

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5751

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Bandwidth26 MHz

Compatible FPGAVirtex-5

Analog Input CouplingDC

Analog Input Voltage Range-1 V to 1 V

Analog Input Resolution14 bits

Maximum Sample Rate50 MS/s

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-5751 is a FlexRIO digitizer adapter module, identified by NI part number 781356-01. It provides 16 voltage input channels with 14-bit resolution and a maximum sample rate of 50 MS/s.

Its analog inputs are DC-coupled, with a -1 V to 1 V input range and 26 MHz bandwidth. Use the NI specifications and getting-started guide to check system integration requirements for the intended FlexRIO configuration.

16 voltage input channels.
Maximum sample rate of 50 MS/s with 14-bit analog input resolution.
26 MHz analog input bandwidth.
DC-coupled analog inputs with a -1 V to 1 V input range.
Digitizer adapter module for the NI FlexRIO family.

Verified specifications

Technical data

Verified product specifications.

Analog Input Bandwidth	26 MHz
Compatible FPGA	Virtex-5
Analog Input Coupling	DC
Analog Input Voltage Range	-1 V to 1 V
Analog Input Resolution	14 bits
Maximum Sample Rate	50 MS/s
Number of Voltage Input Channels	16
Supported Hardware Platform	Computer-Based Device
Enclosed	Yes
NI part numbers	781356-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

NI-5751

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI-5751?

The NI-5751 is a digitizer adapter module for FlexRIO with 16 voltage input channels, 14-bit resolution and a maximum sample rate of 50 MS/s.

What is the NI-5751 part number?

The recorded NI part number is 781356-01.

What input range and coupling does the NI-5751 provide?

The analog inputs are DC-coupled with a voltage range of -1 V to 1 V. The analog input bandwidth is 26 MHz.

Which FPGA family is listed for the NI-5751?

The existing verified specification lists Virtex-5. Confirm the exact FlexRIO hardware and software configuration using NI documentation; the FPGA family designation is not a complete compatibility list.
