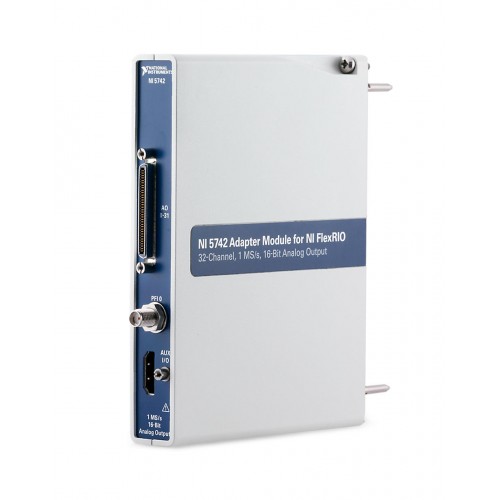

National Instruments NI-5742 Signal Generator Adapter Module
1 image: Click to enlarge
National Instruments · NI FlexRIO

NI-5742

The NI-5742 is a 32-channel analog output adapter for NI FlexRIO FPGA modules. It provides 16-bit signal generation at a maximum update rate of 1 MS/s, with configurable bipolar or unipolar outputs.

ManufacturerNational Instruments
ModelNI-5742
Part Number782865-01
Product TypeSignal Generator Adapter Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5742

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog outputs32 channels
Resolution16 bits
Maximum update rate1 MS/s
Output ranges-2.5 to +2.5 V or 0 to 5 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-5742 adds multichannel analog signal generation to a FlexRIO FPGA system. It is an adapter module, not a standalone signal generator; NI describes the combined adapter and FPGA module as the NI 5742R.

Output polarity is configured programmatically through an FPGA I/O node. Bipolar operation spans -2.5 to +2.5 V, while unipolar operation spans 0 to 5 V.

  • 32 analog output channels for multichannel signal generation.
  • 16-bit output resolution and a maximum update rate of 1 MS/s.
  • Programmable bipolar and unipolar output modes.
  • AUX I/O provides eight digital I/O lines and four PFI lines.
Verified specifications

Technical data

Verified product specifications.

Analog output channels32 channels
Analog output resolution16 bits
Maximum update rate1 MS/s
Bipolar output range-2.5 to +2.5 V
Unipolar output range0 to 5 V
AUX I/O channels12 bidirectional: 8 DIO and 4 PFI
AUX I/O interface standard3.3 V LVCMOS
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI FlexRIO FPGA module

Required FPGA host for the adapter

NI-5742

Analog output adapter

Programming environment

LabVIEW with the LabVIEW FPGA Module and appropriate FlexRIO support software.

Confirm the FPGA host and software versions before system integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 5742 Getting Started GuideGetting Started Guide · download.ni.com
Open →
NI 5742 SpecificationsSpecifications · download.ni.com
Open →
Setting Output Voltage for NI 5741/5742 Adapter ModulesConfiguration Guidance · knowledge.ni.com
Open →
NI SHC68-C68-D4 Hardware CompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the NI-5742 operate by itself?

No. It is an adapter designed to work with an NI FlexRIO FPGA module.

Does the NI-5742 support a 0 to 5 V output range?

Yes. Select unipolar operation for 0 to 5 V, or bipolar operation for -2.5 to +2.5 V, using the FPGA I/O polarity configuration.

Is the AUX I/O connector an HDMI interface?

No. Although its connector accepts an HDMI cable, AUX I/O is not an HDMI interface and must not be connected to another device's HDMI port.
