NI (National Instruments) NI-5741 16-Bit, 1 MS/s, 16-Channel Signal Generator Adapter Module for FlexRIO

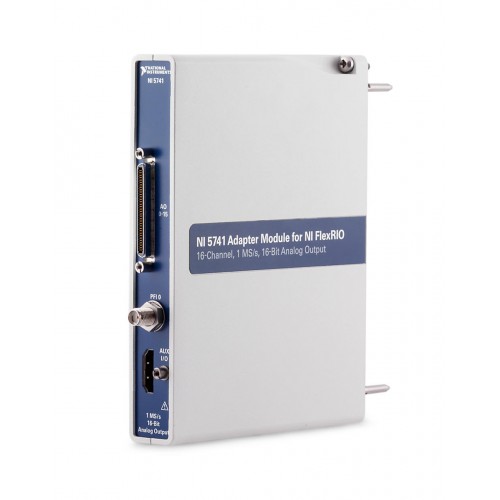

1 image: Click to enlarge

NI (National Instruments) · PXI

NI-5741

The NI-5741 is a 16-channel, 16-bit signal generator adapter module for FlexRIO with a maximum analog update rate of 1 MS/s. Its analog output voltage range is -2.5 V to 2.5 V.

ManufacturerNI (National Instruments)

ModelNI-5741

Part Number782864-01

Product Type16-Bit, 1 MS/s, 16-Channel Signal Generator Adapter Module for FlexRIO

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5741

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Output Channels16

Analog Output Voltage Range-2.5 V to 2.5 V

Analog Output Resolution16 bits

Maximum Analog Update Rate1 MS/s

Compatible FPGAVirtex-5, Kintex-7

Supported Hardware PlatformPXI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-5741 provides 16 analog output channels for FPGA-driven signal generation in a FlexRIO system. It combines 16-bit output resolution with a maximum analog update rate of 1 MS/s and an output range of -2.5 V to 2.5 V.

Each channel has a user-configurable sample rate, with data written directly from the FPGA. The adapter must be paired with a compatible PXI FPGA Module for FlexRIO; the retained product data identifies support for Virtex-5 and Kintex-7 FPGA hardware.

16 analog output channels.
16-bit analog output resolution.
Maximum analog update rate of 1 MS/s.
Analog output voltage range of -2.5 V to 2.5 V.
User-configurable sample rate for each channel, with data written directly from the FPGA.

Verified specifications

Technical data

Verified product specifications.

Number of Analog Output Channels	16
Analog Output Voltage Range	-2.5 V to 2.5 V
Analog Output Resolution	16 bits
Maximum Analog Update Rate	1 MS/s
Compatible FPGA	Virtex-5, Kintex-7
Supported Hardware Platform	PXI
Reconfigurable	No
NI part numbers	782864-01
