NI (National Instruments) NI-5734 120 MS/s, 16-Bit, 4-Channel Digitizer Adapter Module for FlexRIO

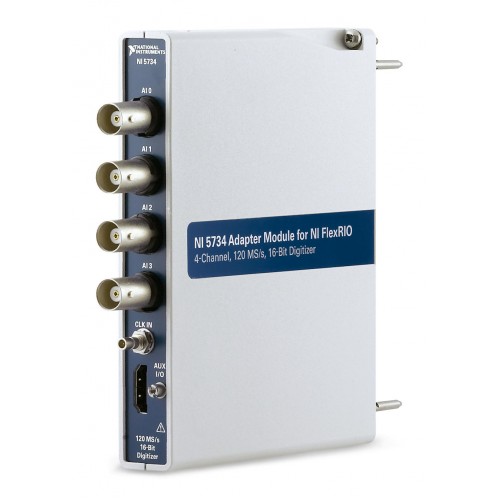

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

NI-5734

The NI-5734 is a four-channel digitizer adapter module for FlexRIO with 16-bit resolution, a maximum sample rate of 120 MS/s and 117 MHz analog input bandwidth.

ManufacturerNI (National Instruments)
ModelNI-5734
Part Number781659-04
Product Type120 MS/s, 16-Bit, 4-Channel Digitizer Adapter Module for FlexRIO
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5734

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Input Bandwidth117 MHz
Compatible FPGAVirtex-5, Kintex-7
Analog Input CouplingAC/DC
Analog Input Voltage Range-1 V to 1 V
Analog Input Resolution16 bits
Maximum Sample Rate120 MS/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-5734 combines with a PXI FPGA Module or Controller for FlexRIO to create a high-speed digitizer that simultaneously samples four channels at 120 MS/s. It is an adapter module within a FlexRIO system, rather than a complete standalone digitizer.

The module supports real-time processing and streaming of analog data and includes selectable elliptic, Bessel and bypass hardware filters. Its analog inputs provide AC/DC coupling and a -1 V to 1 V input range.

  • Four simultaneously sampled analog input channels at up to 120 MS/s.
  • 16-bit analog input resolution with 117 MHz analog input bandwidth.
  • AC/DC input coupling and a -1 V to 1 V analog input range.
  • Selectable elliptic, Bessel and bypass hardware filters.
  • FlexRIO integration with listed Virtex-5 and Kintex-7 FPGA options.
Verified specifications

Technical data

Verified product specifications.

Analog Input Bandwidth117 MHz
Compatible FPGAVirtex-5, Kintex-7
Analog Input CouplingAC/DC
Analog Input Voltage Range-1 V to 1 V
Analog Input Resolution16 bits
Maximum Sample Rate120 MS/s
Number of Voltage Input Channels4
Supported Hardware PlatformComputer-Based Device
EnclosedYes
NI part numbers781659-04
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.
