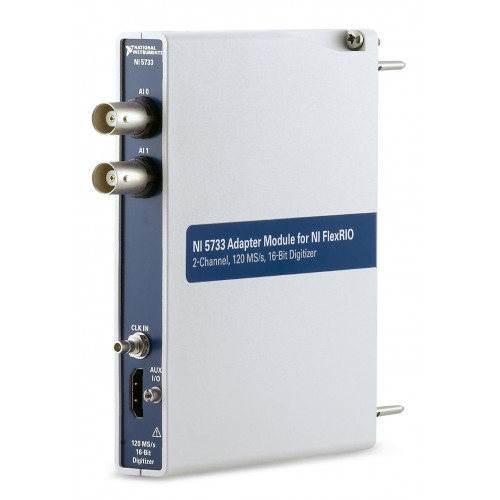

The NI-5733 is a two-channel, 16-bit, 120 MS/s digitizer adapter for NI FlexRIO FPGA modules.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This adapter supplies analog acquisition for a FlexRIO FPGA system; it is not a standalone digitizer.
Verified product specifications.
| Analog input channels | 2 |
|---|---|
| Resolution | 16 bit |
| Maximum sample rate | 120 MS/s |
| Input connectors | BNC |
| Input impedance | 50 per connector Ω |
| Selectable gain | 0, 6, 12 dB |
| Bypass bandwidth, −3 dB | 117 MHz |
| Full-scale input at 0 dB gain | 2.085 Vpk-pk |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
FPGA platform
Digitizer adapter
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI uses the R designation for the adapter combined with a FlexRIO FPGA module.
