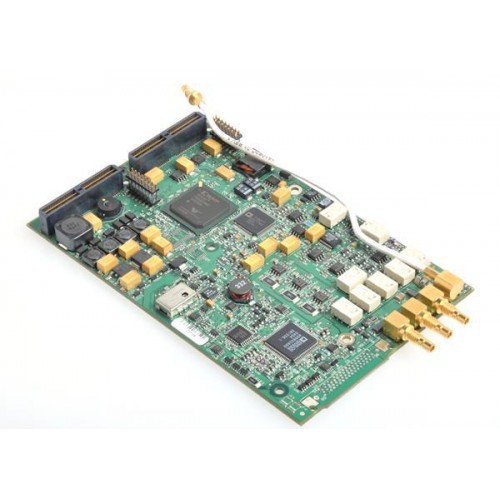

NI-5421

The National Instruments NI-5421 is a 100 MS/s, 16-bit arbitrary waveform generator family offered in PCI and PXI versions. This catalog record does not identify the installed bus format or memory configuration.

ManufacturerNational Instruments

ModelNI-5421

Product TypeArbitrary waveform generator

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-5421

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Instrument typeArbitrary waveform generator

Update rate100 MS/s

Resolution16-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The 5421 family provides standard and user-defined waveform generation. NI documents both a computer-based PCI-5421 device and a PXI-5421 module, so the abbreviated NI-5421 designation alone does not establish the required host hardware.

Memory capacity and digital output options depend on the configuration. Confirm the full model and manufacturer part number on the hardware before selecting system components or applying variant-specific specifications.

100 MS/s waveform update rate.
16-bit analog waveform resolution.
Supports standard functions and user-defined arbitrary waveforms.

Verified specifications

Technical data

Verified product specifications.

Waveform update rate	100 MS/s
Analog output resolution	16 bit

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI / PXI

Documented 5421 hardware variants; exact catalog variant unresolved

NI-5421

Arbitrary waveform generator family

Confirm the full PCI-5421 or PXI-5421 designation, part number, memory size, and digital output option before integration.
