NI-1483

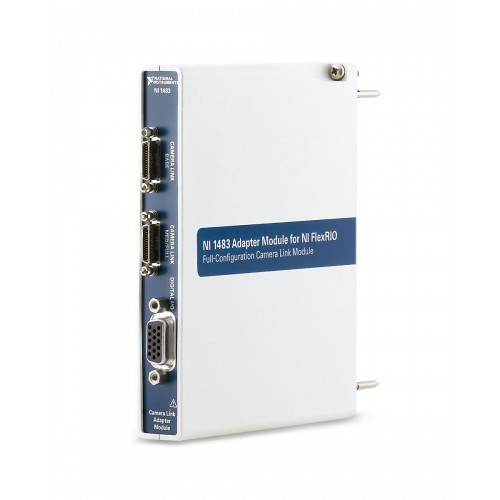

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

NI-1483

The NI-1483 is a full-configuration Camera Link adapter module for FlexRIO with one camera input. Paired with a PXI FPGA Module for FlexRIO, it supports FPGA-based image acquisition and processing.

ManufacturerNI (National Instruments)
ModelNI-1483
Part Number781341-01
Product TypeFull-Configuration Camera Link Adapter Module for FlexRIO
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-1483

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Camera Interface TypeCamera Link - Full
Number of Camera Input Ports1
Number of TTL Inputs4
Quadrature Encoder Inputs2
Isolated Digital Inputs2
ReconfigurableNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-1483 provides a Camera Link camera interface for FlexRIO systems. It supports 80-bit, 10-tap image acquisition from Camera Link 1.2 standard cameras using base, medium, and full configurations.

The adapter can be paired with a PXI FPGA Module for FlexRIO to perform custom image analysis. FPGA processing can operate independently or alongside a CPU, supporting image-preprocessing architectures that move processing tasks away from the CPU.

  • Full-configuration Camera Link adapter module for FlexRIO.
  • One camera input port with support for base-, medium-, and full-configuration acquisition.
  • Supports 80-bit, 10-tap image acquisition from Camera Link 1.2 standard cameras.
  • Provides four TTL inputs, two quadrature encoder inputs, and two isolated digital inputs.
  • Supports FPGA-based image processing when paired with a PXI FPGA Module for FlexRIO.
Verified specifications

Technical data

Verified product specifications.

Camera Interface TypeCamera Link - Full
Number of Camera Input Ports1
ReconfigurableNo
Number of TTL Inputs4
Number of Quadrature Encoder Inputs2
Number of Isolated Digital Inputs2
Supported Hardware PlatformComputer-Based Device
Bus ConnectionPXI
NI part numbers781341-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

NI-1483

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI-1483?

The NI-1483 is a full-configuration Camera Link adapter module for FlexRIO. It provides the camera interface for image acquisition and can be paired with a PXI FPGA Module for FlexRIO for image processing.

How many camera input ports does the NI-1483 have?

It has one camera input port.

Which Camera Link acquisition configurations are supported?

The NI-1483 supports 80-bit, 10-tap base-, medium-, and full-configuration image acquisition from Camera Link 1.2 standard cameras.

What digital and encoder inputs are provided?

The module provides four TTL inputs, two quadrature encoder inputs, and two isolated digital inputs.
