NB-TIO-10
1 image: Click to enlarge
National Instruments · Macintosh NuBus

NB-TIO-10

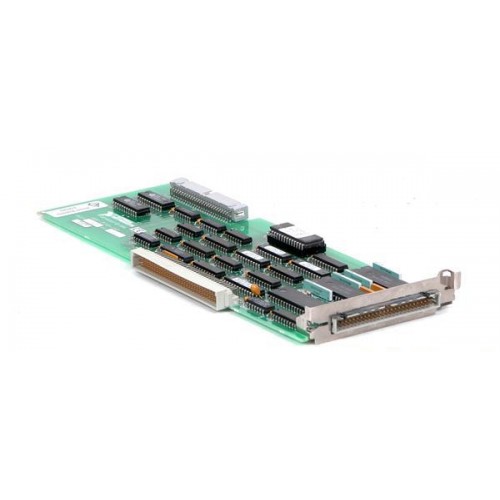

The National Instruments NB-TIO-10 is a counter/timer board for Macintosh NuBus systems. It provides 10 general-purpose 16-bit counters, eight of which have SOURCE inputs at the I/O connector, plus two 8-bit digital I/O ports.

ManufacturerNational Instruments
ModelNB-TIO-10
Product TypeCounter/timer board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NB-TIO-10

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfaceMacintosh NuBus
Counters10 general-purpose, 16-bit counters
External SOURCE accessEight counters have SOURCE inputs at the I/O connector
Digital I/OTwo 8-bit ports with bit-wise direction control
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NB-TIO-10 belongs to NI's Macintosh NuBus data acquisition hardware. Its Am9513 counter architecture supports up/down counting, selectable gate modes, and terminal-count pulse or toggle outputs.

NI documents 10 counters rather than eight: eight counters expose SOURCE inputs at the I/O connector. Software selection is also important for legacy integration; NI lists the board under Macintosh NI-DAQ 4.9.4 support and states that NI-DAQ 6.x does not support NuBus devices.

  • 10 general-purpose counters with 16-bit resolution and up/down count direction.
  • High-level, low-level, rising-edge, and falling-edge counter gating modes.
  • Two 8-bit digital ports with bit-wise direction control and software-polled transfers.
Verified specifications

Technical data

Verified product specifications.

Bus interfaceNuBus
Counter architectureAm9513
General-purpose counters10; eight have SOURCE inputs at the I/O connector
Counter resolution16 bit
Internal timebases5 MHz (CTR5 and CTR10 only), 1 MHz, 100 kHz, 10 kHz, 1 kHz, 100 Hz
External timebaseSupported
Counter gate modesHigh-level, low-level, rising-edge, falling-edge
Counter output modesTerminal-count pulse or terminal-count toggle
Count directionUp or down
Digital I/O portsTwo 8-bit ports, numbered 0 and 1; bit-wise direction control; no handshaking; software polling
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Macintosh NuBus

Host platform and expansion interface

NB-TIO-10

Counter/timer and digital I/O board

Documented driver

NI-DAQ 4.9.4 for Macintosh

Confirm the Macintosh NuBus host and legacy software configuration. NI-DAQ 6.x does not support NuBus devices.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Function and VI Reference Manual — Tables B-30 and B-31Archived Reference Manual · download.ni.com
Open →
LabVIEW Data Acquisition Basics Manual — NuBus Hardware SupportArchived Manual · download.ni.com
Open →
NI-DAQ and NI-DAQmx Base Driver Support on Mac SystemsNI Support Article In Chinese · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NB-DIO-24View product →
Related model
NB-MIO-16View product →

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which interface does the NB-TIO-10 use?

NI lists the NB-TIO-10 as a Macintosh NuBus device.

Which legacy Macintosh driver supports this board?

NI explicitly lists the NB-TIO-10 under NI-DAQ 4.9.4 support. Its support article states that NI-DAQ 6.x does not support NuBus devices.
