National Instruments · Macintosh NuBus

NB-MIO-16H-9

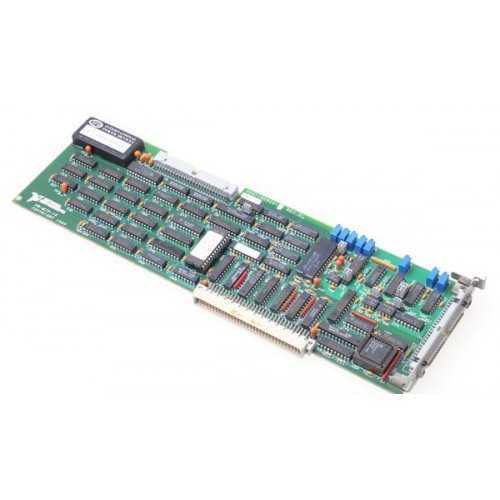

The National Instruments NB-MIO-16H-9 is an NB-MIO-16 family multifunction DAQ board for Macintosh NuBus systems. It provides 12-bit analog input with 16 single-ended or 8 differential channels; NI lists a maximum sampling rate of 111 kS/s for the H-9 variant.

ManufacturerNational Instruments

ModelNB-MIO-16H-9

Product TypeMultifunction data acquisition board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NB-MIO-16H-9

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfaceMacintosh NuBus

Analog inputs16 single-ended or 8 differential

Input resolution12-bit

Maximum sampling rate111 kS/s for H-9

H-series gains1, 2, 4 and 8

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NB-MIO-16H-9 belongs to NI's NB-MIO-16 family of Macintosh NuBus data acquisition boards. The H configuration provides gains of 1, 2, 4 and 8, while the H-9 speed variant is listed at up to 111,000 samples per second.

Selectable single-ended or differential analog input configuration.
12-bit analog input conversion.
H-series analog input gains of 1, 2, 4 and 8.
Analog input transfers support DMA and interrupts.

Verified specifications

Technical data

Verified product specifications.

Bus interface	NuBus
Analog input channels	16 single-ended or 8 differential channels
Analog input resolution	12 bits
Maximum analog input sampling rate	111000 S/s
Analog input gains	1, 2, 4, 8
Analog input transfer methods	DMA and interrupts

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Macintosh NuBus

Host platform and expansion bus

NB-MIO-16H-9

H-9 variant of the NB-MIO-16 DAQ family

Legacy driver context

NI lists NB-MIO-16 under NuBus devices supported by NI-DAQ 4.9.4; NI-DAQ 6.x does not support NuBus devices.

Confirm the Macintosh host, legacy driver version and board revision before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Function and VI Reference Manual — Appendix B DAQ Hardware CapabilitiesReference Manual · download.ni.com

Open →

NI-DAQ and NI-DAQmx Base Support on MacintoshLegacy Driver Support Article (Chinese) · ni.com

Open →

SC-2043-SG User Manual — NB-MIO-16H compatibility cautionTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the maximum sampling rate of the NB-MIO-16H-9?

NI's hardware capability table lists 111 kS/s for the NB-MIO-16 H-9 variant. This is the device sampling-rate specification, not a stated per-channel rate.

What distinguishes the H input configuration?

The H configuration offers gains of 1, 2, 4 and 8. NI cautions that NB-MIO-16H boards are not intended for direct interfacing to low-level signals and should not be used with the SC-2043-SG.

Which legacy driver supports the NB-MIO-16 family?

NI lists NB-MIO-16 among NuBus devices supported by NI-DAQ 4.9.4 for legacy Macintosh systems. The same support article states that NI-DAQ 6.x does not support NuBus devices.
