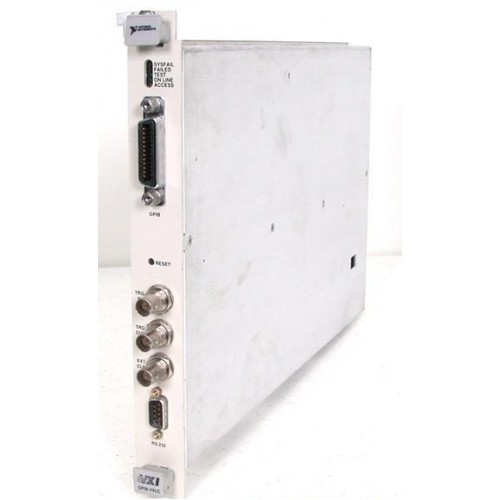

The NI GPIB-VXI/C translates GPIB and VXI protocols, allowing a standard GPIB controller to control VXI instruments.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Installed in a VXI mainframe, this module bridges an external GPIB controller and VXI instrumentation.
NI documents both message-based and register-based programming through NI-VISA. VISA addresses the target VXI device by logical address and handles the controller messaging needed for register access.
Verified product specifications.
| Resource manager role | VXIbus Slot 0 |
|---|---|
| GPIB cable connection | 24 pins |
| Trigger capability | Control and response |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Controller-to-instrument interface
Resource manager
NI documents NI-VISA programming for message-based and register-based VXI devices through this controller.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI-VISA opens the target device using its VXI logical address. NI's migration guidance contrasts this with NI-488 programming that uses primary and secondary GPIB addresses.
Yes. NI documents trigger control and response through its local command set, with an onboard TIC chip in the /C model.
The getting-started guide describes using VISA Interactive Control to send *idn? and read the identification response.
