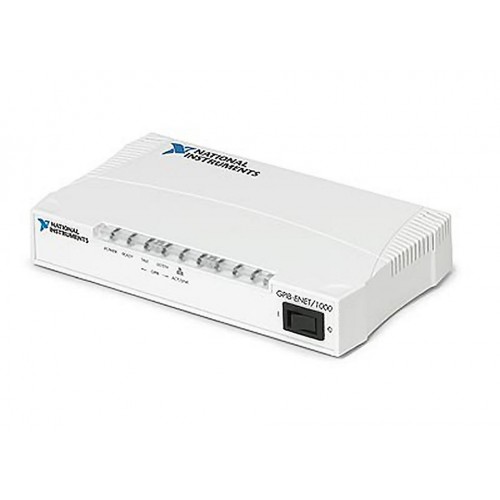

The NI GPIB-ENET/1000 connects IEEE 488 instruments to an Ethernet TCP/IP network for network-based instrument control.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The controller supports sharing a GPIB system among networked users or controlling several test systems from one networked host. NI specifies that one computer can control up to 100 GPIB-ENET/1000 interfaces.
Network addressing can be configured automatically through DHCP or manually through the web interface. Actual data-transfer performance depends on network traffic and subnet characteristics.
Verified product specifications.
| Host connection | Ethernet |
|---|---|
| Ethernet standards | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Connectors | 1 GPIB (IEEE 488), 1 RJ45 |
| Maximum connected GPIB devices | 14 devices |
| Maximum interfaces controlled by one computer | 100 interfaces |
| Operating temperature | 0 to 55 °C |
| Onboard GPIB analyzer | No |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host network connection
Network-to-GPIB controller
Controlled instrument bus
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. NI identifies control of multiple instrumentation racks from one computer as an application for this controller.
No. Gigabit Ethernet describes the network connection. NI documents separate GPIB transfer performance and notes that network traffic can affect actual throughput.
