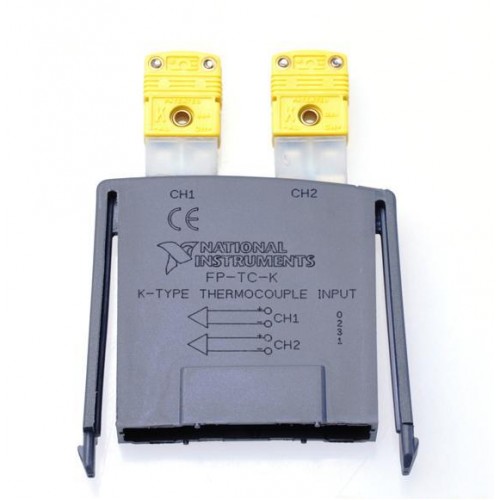

National Instruments FP-TC-K Thermocouple input module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-TC-K

Name: FP-TC-K
Brand: National Instruments

The FP-TC-K measures K-type thermocouples in FieldPoint systems.

ManufacturerNational Instruments

ModelFP-TC-K

Product TypeThermocouple input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-TC-K

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs2 differential

Resolution12-bit

Temperature range−100 to 1372 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Mounts on the FP-TB-10; thermocouples connect directly to the module.

K-type inputs
Selectable °C/°F per channel
Two onboard thermocouple connectors

Verified specifications

Technical data

Verified product specifications.

Measurement bandwidth	20 Hz
Temperature resolution	0.36 °C
Accuracy at 25 °C	1 °C
Operating temperature	−20 to +70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Platform

FP-TB-10

Terminal base

Compatibility

FP-TB-10 terminal base

For channel-to-channel isolation, use only one channel per module.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint ModulesOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Are thermocouples wired to base terminals?

No. Use the module's thermocouple connectors.
