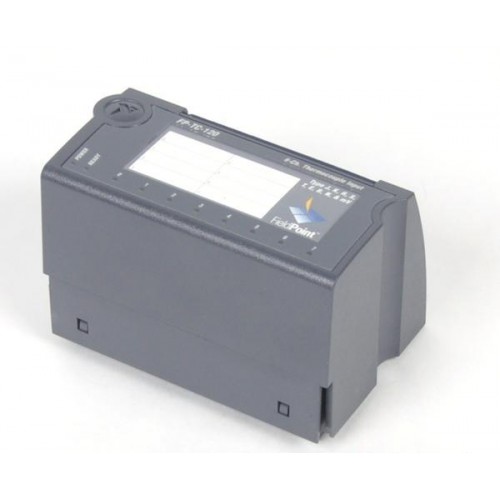

National Instruments FP-TC-120 Thermocouple input module
1 image: Click to enlarge
National Instruments · FieldPoint

FP-TC-120

The NI FP-TC-120 provides eight differential thermocouple or millivolt inputs for FieldPoint systems.

ManufacturerNational Instruments
ModelFP-TC-120
Product TypeThermocouple input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-TC-120

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels8 differential
Resolution16-bit
ThermocouplesJ, K, R, S, T, N, E, B
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The module mounts on an FP-TB-x terminal base and receives operating power through that base.

  • Automatic cold-junction compensation in temperature mode.
  • Open-thermocouple detection with channel LEDs.
  • Hot plug-and-play installation.
Verified specifications

Technical data

Verified product specifications.

ADC16-bit delta-sigma
Voltage ranges±25, ±50, ±100; −20 to 80 mV
Channel update interval1.13 s
Input bandwidth3 Hz
Operating temperature−40 to 70 °C
Channel-to-channel isolationNone
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-TC-120

Thermocouple input

Compatibility

FP-TB-3 isothermal terminal base.

FP-TC-120 and cFP-TC-120 use different mounting hardware; follow the model-specific installation instructions.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TC-120 and cFP-TC-120 Operating InstructionsOperating Instructions And Specifications · docs-be.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which terminal base does NI recommend?

NI recommends the FP-TB-3 isothermal terminal base for optimal cold-junction compensation.

Can it measure millivolt signals?

Yes. Selecting a voltage range bypasses thermocouple-type configuration.
