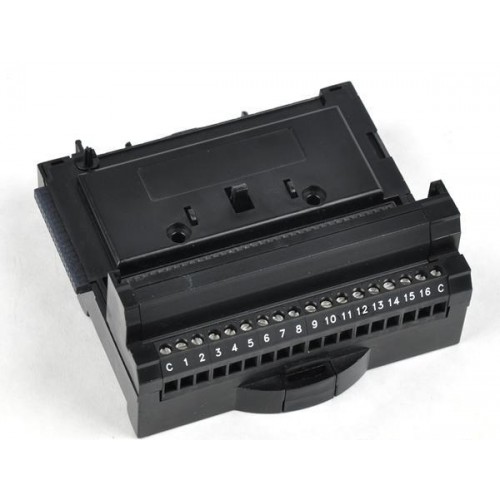

The NI FP-TB-3 is an isothermal FieldPoint terminal base designed for thermocouple I/O modules.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The base provides field wiring, I/O module mounting, and the communication link to FieldPoint network modules.
NI recommends the FP-TB-3 for FP-TC-120 thermocouple measurements because its isothermal construction reduces temperature differences across the terminals. Installation still matters: nearby heat sources and heat conducted through thermocouple wires can introduce measurement errors.
Verified product specifications.
| Numbered terminals | 16 |
|---|---|
| Terminal type | Screw |
| Screw torque | 0.5–0.6 N·m |
| Weight | 240 g |
| Operating temperature | −40 to 70 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Distributed I/O platform
Terminal base
Supports FP-TC-120. Other I/O modules must require no external power and use only terminals 1–16.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
FP-TB-3 has isothermal construction. NI explains that FP-TB-1 and FP-TB-2 lack this construction and are more susceptible to thermal-gradient errors.
NI recommends small-gauge thermocouple wire, keeping wires together near the base, and avoiding hot or cold objects that could conduct heat through the wires.
