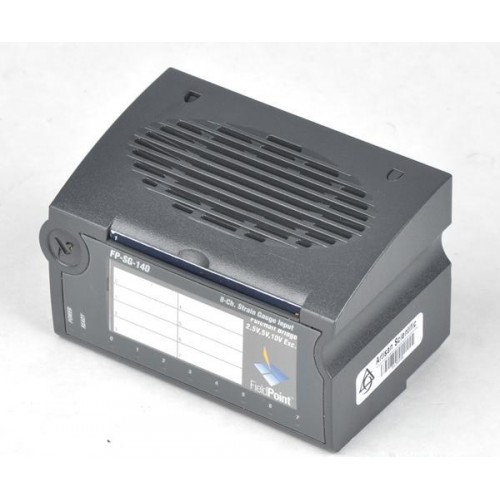

The National Instruments FP-SG-140 is an eight-channel strain gauge input module for FieldPoint distributed I/O.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Installs on a FieldPoint terminal base and reports measurements in mV/V for sensor-specific scaling.
Verified product specifications.
| ADC | 16-bit delta-sigma |
|---|---|
| Nominal input ranges | ±3.5, ±7.5, ±30, ±60 mV/V |
| Excitation | 2.5, 5, 10 V |
| Excitation current limit per channel | 21 mA |
| Filter settings | 15, 60, 240 Hz |
| Operating temperature | -40 to 70 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Distributed I/O platform
Strain gauge input
Mounts on FP-TB-x FieldPoint terminal bases.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes, with an external completion resistor and internal half-bridge completion enabled.
No. Channels share a common ground.
