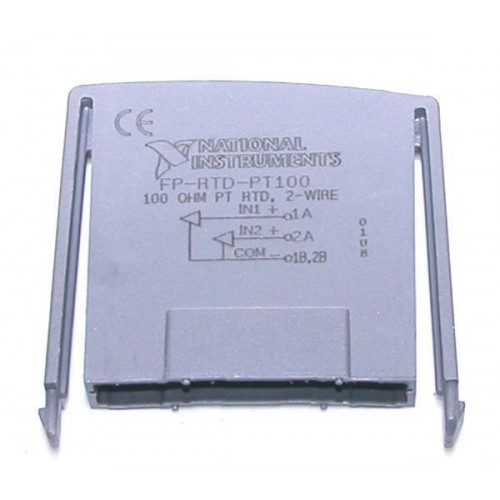

National Instruments FP-RTD-PT100 RTD input module
1 image: Click to enlarge
National Instruments · FieldPoint

FP-RTD-PT100

The FP-RTD-PT100 measures two-wire 100 Ω platinum RTDs in a FieldPoint system.

ManufacturerNational Instruments
ModelFP-RTD-PT100
Product TypeRTD input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-RTD-PT100

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels2
Resolution12-bit
Range−50 to 350 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Used with the FP-TB-10 terminal base, this module provides temperature readings with selectable Celsius or Fahrenheit units.

  • DIN 43760 linearization.
  • 500 µA excitation.
  • 15 Hz measurement bandwidth.
Verified specifications

Technical data

Verified product specifications.

Inputs2 single-ended
SensorTwo-wire platinum, 100 Ω
RTD alpha0.00385 Ω/Ω/°C
Measurement resolution12 bit
Temperature range−50 to 350 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O

FP-TB-10

Terminal base

FP-RTD-PT100

RTD input

Channels share their negative terminals; they are not mutually isolated.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this the four-wire version?

No. FP-RTD-PT100 is two-wire; FP-RTD-PT100-4 is four-wire.
