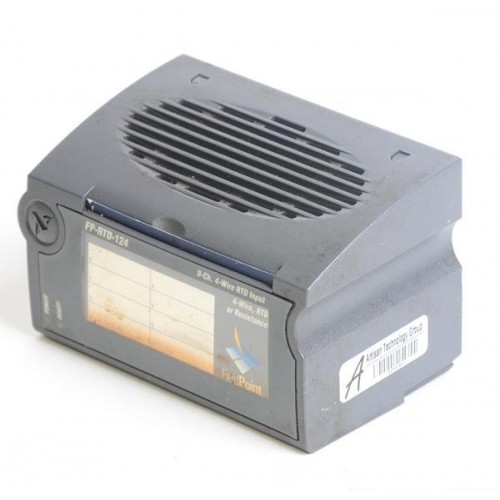

The NI FP-RTD-124 provides eight FieldPoint inputs for four-wire PT100 RTDs and resistance measurements.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The module mounts on an FP-TB-x terminal base, which supplies operating power.
Verified product specifications.
| Input channels | 8 |
|---|---|
| ADC | 16-bit delta-sigma |
| Resistance range | 0–400 Ω |
| Temperature range | −200 to 850 °C |
| Channel update interval | 1 s |
| Excitation | 2 mA, 135 ms pulses every second |
| Operating temperature | −40 to 70 °C |
| Channel-to-channel isolation | None |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Distributed I/O platform
RTD input
Mounts on FieldPoint FP-TB-x terminal bases.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes, with the documented jumpers, but NI recommends FP-RTD-122 for three-wire lead-resistance compensation.
No. Configure each channel for its connected RTD.
