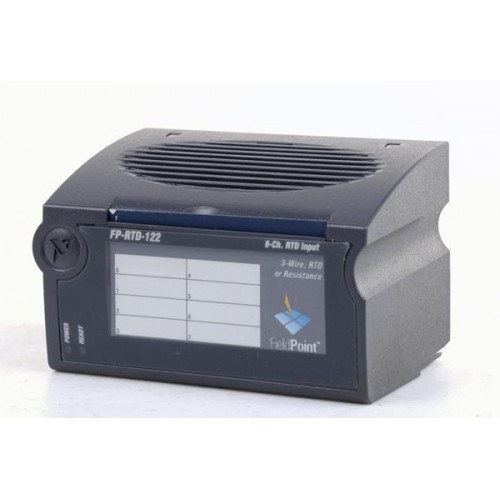

National Instruments FP-RTD-122 RTD and resistance input module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-RTD-122

The FP-RTD-122 provides eight FieldPoint inputs for platinum RTDs and resistance measurements.

ManufacturerNational Instruments

ModelFP-RTD-122

Product TypeRTD and resistance input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-RTD-122

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels8

SensorsPT100 and PT1000

ADC16-bit delta-sigma

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The module mounts on an FP-TB-x terminal base, which supplies operating power.

True three-wire lead compensation.
Built-in linearization for six RTD TCR values.
50/60 Hz noise filtering.

Verified specifications

Technical data

Verified product specifications.

Temperature range	-200 to 850 °C
Resistance ranges	0–400; 0–4000 Ω
Channel update interval	1.08 s
Operating temperature	-40 to 70 °C
Channel-to-channel isolation	None

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-RTD-122

RTD input

Compatibility

Supports 100 Ω and 1000 Ω platinum RTDs.

Configure each channel for its connected RTD; sensor types are not automatically recognized.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-RTD-122 and cFP-RTD-122 Operating InstructionsOperating Instructions And Specifications · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can it measure two-wire RTDs?

Yes. Jumper COM to SENSE; lead resistance adds measurement error.

Does it provide true four-wire measurement?

No. NI recommends FP-RTD-124 for four-wire RTDs.
