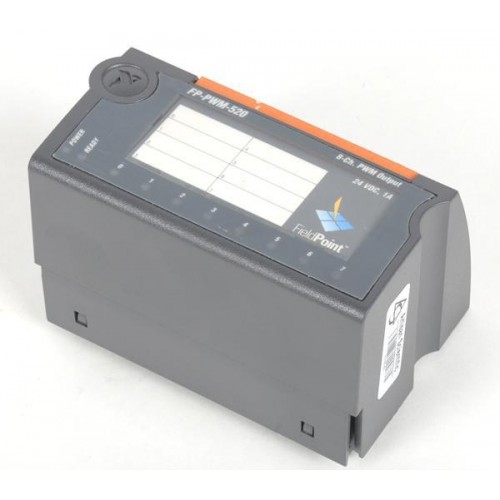

The FP-PWM-520 provides eight sourcing PWM outputs for FieldPoint systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Mounts on an FP-TB-x terminal base. Output loads require external power.
Verified product specifications.
| Duty-cycle range | 0–100 % |
|---|---|
| Output period | 1–65,535 ms |
| Period increment | 1 ms |
| Maximum output current per channel | 1 A |
| Operating temperature | −40 to 70 °C |
| Channel-to-channel isolation | None |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Distributed I/O platform
PWM output
Installs on FieldPoint FP-TB-x terminal bases.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. An external 5 VDC or 10–30 VDC supply powers the outputs.
No. Channels share COM.
