National Instruments FP-PG-522 Pulse generator module

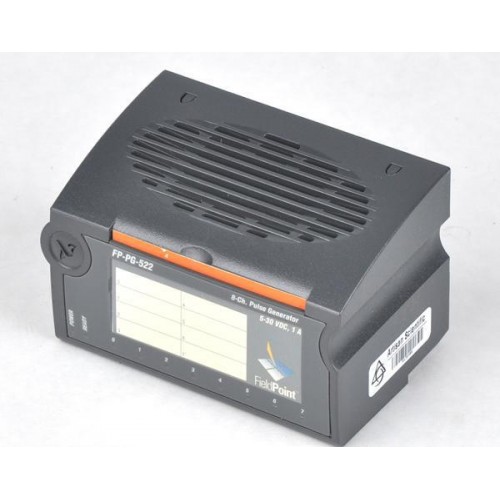

1 image: Click to enlarge

National Instruments · FieldPoint

FP-PG-522

The FP-PG-522 provides eight user-powered sinking pulse outputs for FieldPoint systems.

ManufacturerNational Instruments

ModelFP-PG-522

Product TypePulse generator module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-PG-522

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Outputs8 sinking channels

External supply5–30 VDC

Pulse modesFinite or continuous

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Mounts on an FP-TB-x terminal base. Pulse timing is configured per channel; interchannel synchronization is not supported.

16-bit on-time and off-time settings.
Selectable 100 µs, 10 ms or 1 s timing resolution.
Hot-swappable installation.

Verified specifications

Technical data

Verified product specifications.

Maximum current per channel	2; subject to aggregate limit A
Aggregate current constraint	Sum of squared channel currents ≤16 A²
Operating temperature	−40 to 70 °C
Channel-to-channel isolation	None

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-PG-522

Pulse generation

Compatibility

FP-1600 requires firmware 2.0 or later and FieldPoint Explorer/Server 2.0.1 or later.

Check terminal-base wiring, external supply and aggregate current limits before connection.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-PG-522 and cFP-PG-522 Operating InstructionsOperating Instructions · download.ni.com

Open →

Updating Your Firmware and Software for Use with the FP-PG-522Compatibility And Update Instructions · docs-be.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What firmware is required for older network modules?

NI specifies firmware 2.0 or later for FP-1600, and revision 20 or later for FP-1000/1001.
