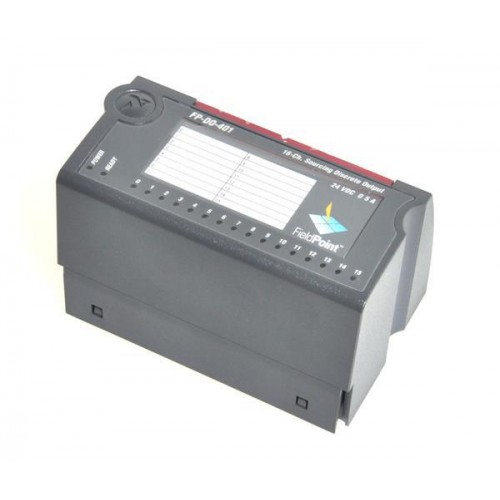

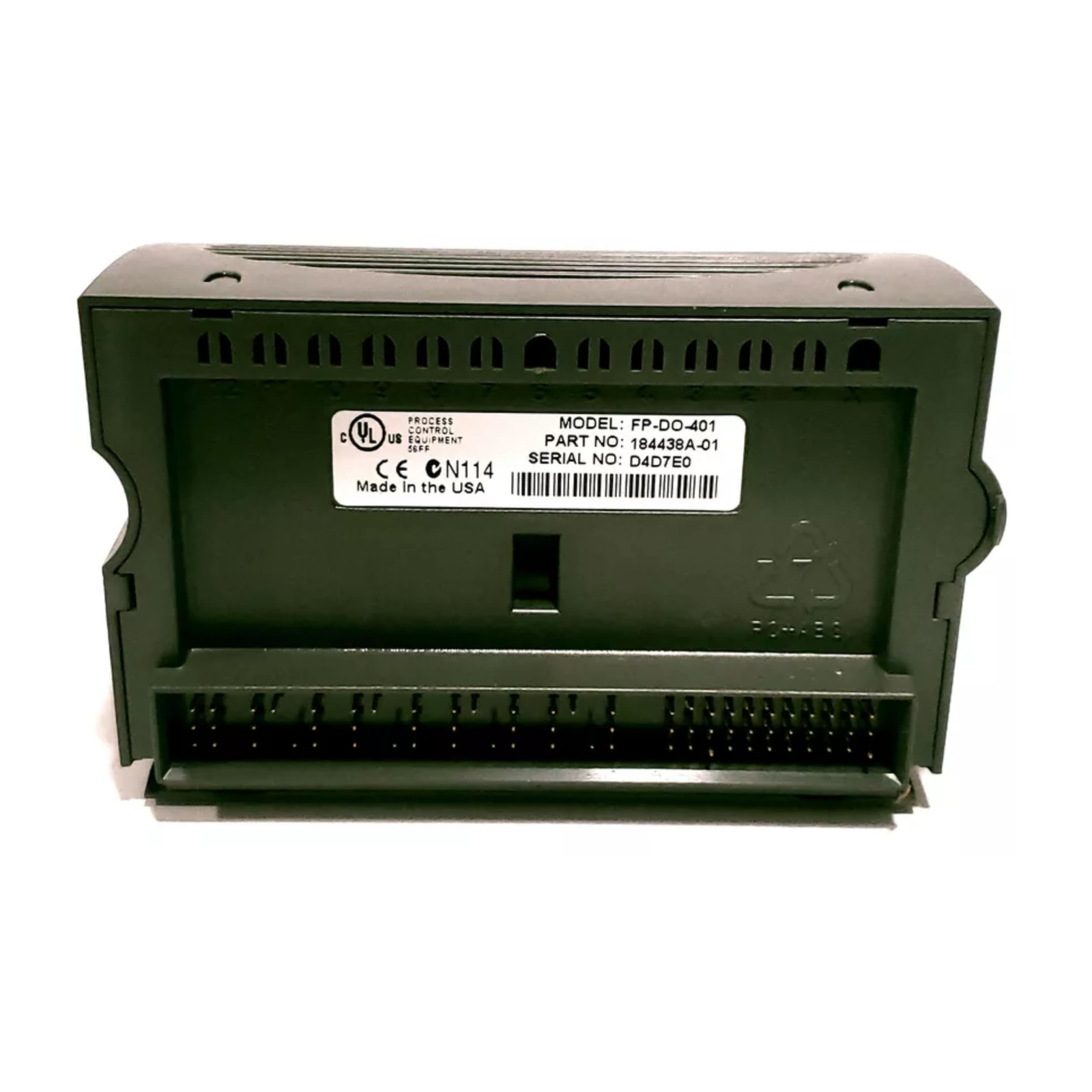

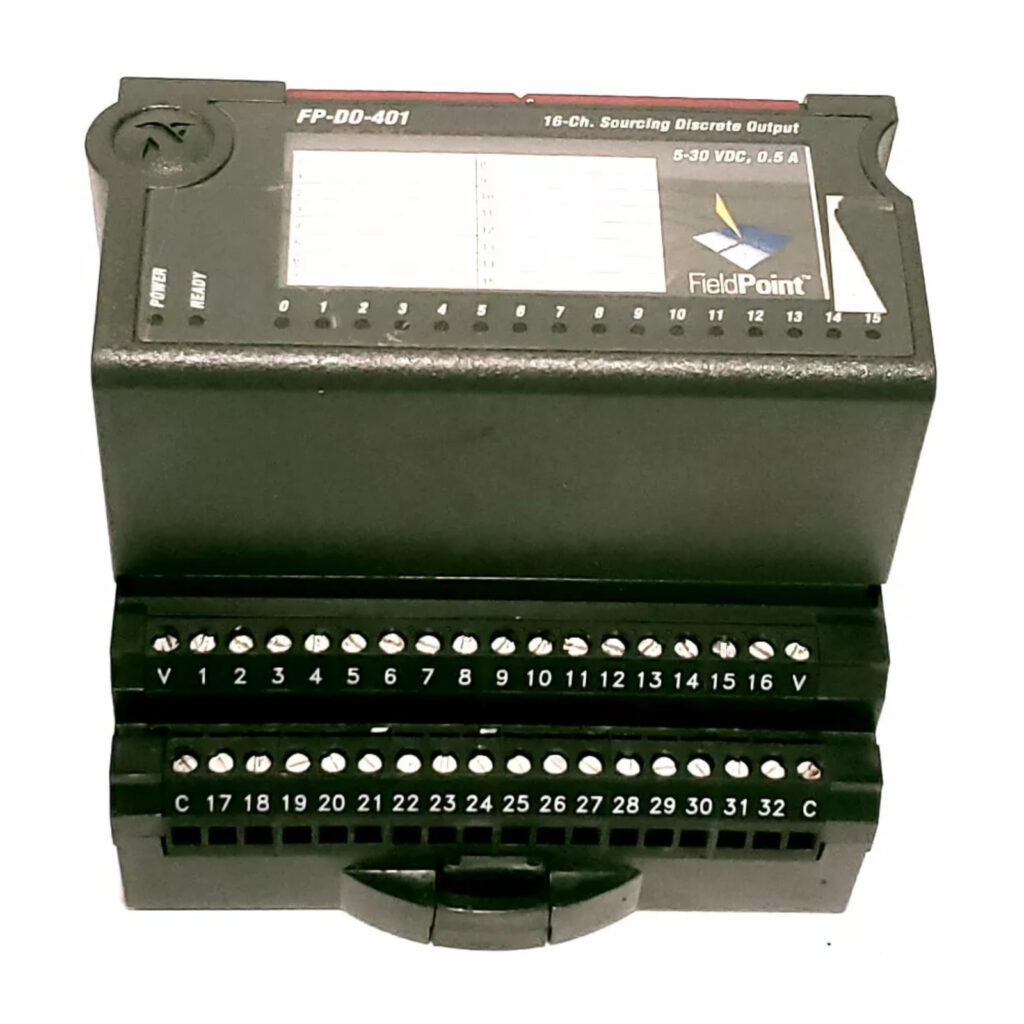

The FP-DO-401 provides 16 sourcing digital outputs for 5–30 VDC circuits in FieldPoint systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.

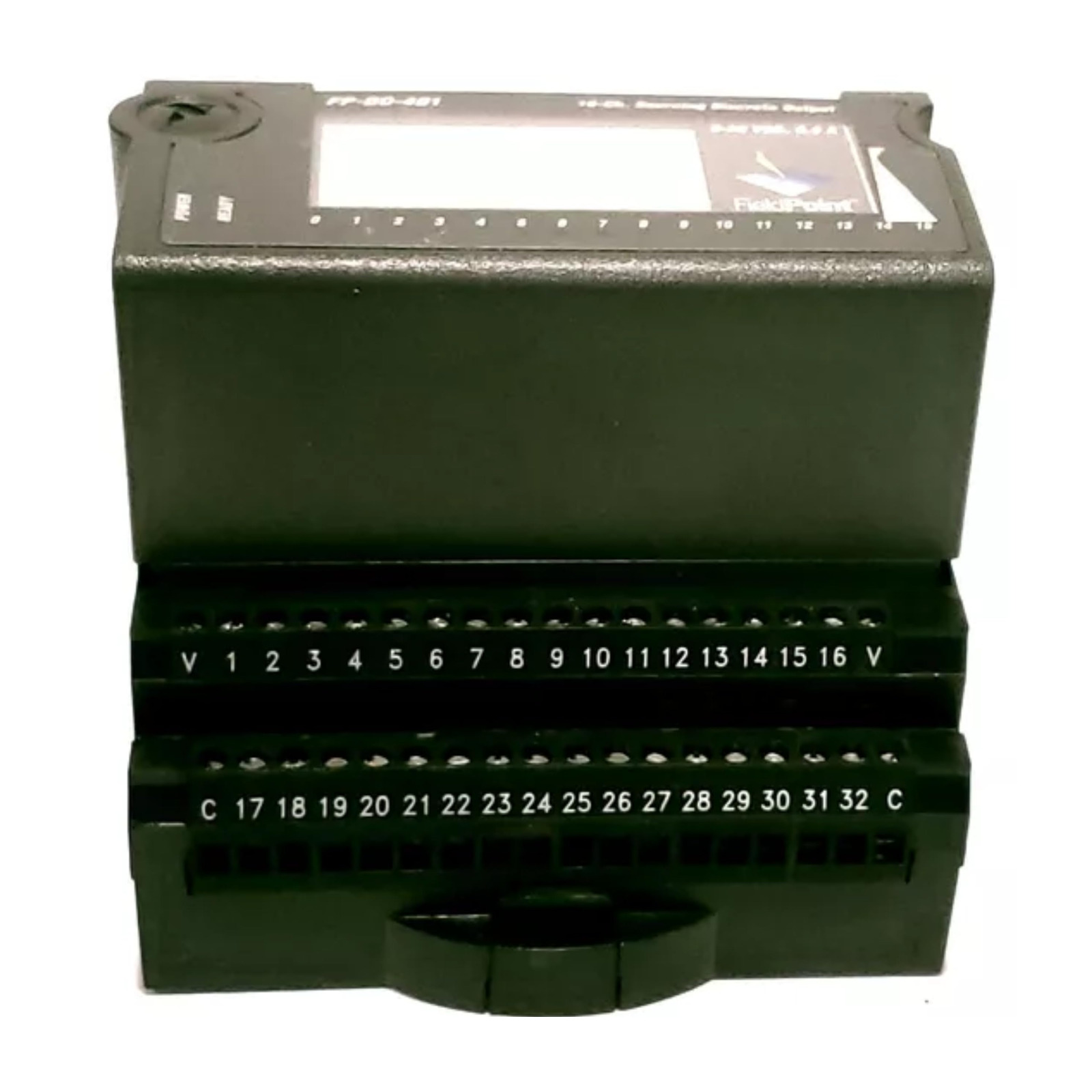

Mounts on an FP-TB-x terminal base; output loads require an external supply.
Verified product specifications.
| Per-channel current, 10–30 V supply | 1.5 maximum A |
|---|---|
| Combined loading, 10–30 V supply | Sum of squared channel currents ≤ 8 A² |
| Per-channel current, 5–10 V supply | 0.67 maximum A |
| Combined loading, 5–10 V supply | Sum of squared channel currents ≤ 1.2 A² |
| Operating temperature | −40 to 70 °C |
| Channel-to-channel isolation | None |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Distributed I/O platform
Digital output
Installs on FieldPoint FP-TB-x terminal bases.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. The cFP-DO-401 uses a Compact FieldPoint backplane; this FP model uses a terminal base.
Do not short outputs to COM: damage can result. Follow NI's external fusing instructions.
