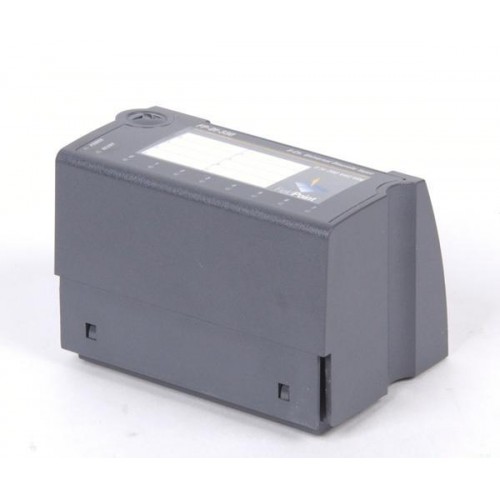

The FP-DI-330 provides eight universal AC/DC digital inputs for FieldPoint systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Mounts on a FieldPoint terminal base, which supplies module operating power.
Verified product specifications.
| DC ON-state magnitude | 4–250 VDC |
|---|---|
| 50/60 Hz AC ON-state | 15–250 VAC |
| Input current limiting | 1.5 mA |
| Continuous channel-to-ground isolation | 250; Installation Category II Vrms |
| Channel-to-channel isolation | None |
| Power from network module | 200 mW |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Platform
Digital input
Supports TTL, CMOS, 24/48 VDC, and 120/240 VAC signals.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. FP-DI-330 uses an FP-TB-x terminal base; cFP-DI-330 uses a Compact FieldPoint backplane.
