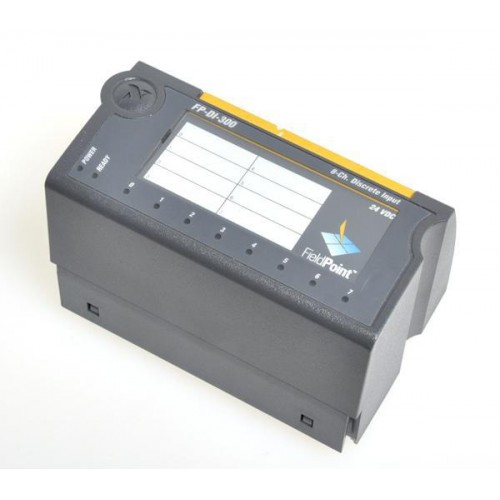

National Instruments FP-DI-300 Digital input module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-DI-300

The NI FP-DI-300 provides eight 24 VDC sinking digital inputs for FieldPoint systems.

ManufacturerNational Instruments

ModelFP-DI-300

Product TypeDigital input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-DI-300

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels8

Input type24 VDC sinking

MountingFP-TB-x terminal base

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The terminal base supplies module operating power; a FieldPoint network module provides network access.

Hot-swappable installation.
Individual channel-state LEDs.
POWER and READY indicators.

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Distributed I/O platform

FP-DI-300

Digital input module

Compatibility

Accepts 24 VDC sourcing-output devices.

All inputs share a common reference; isolation is not channel-to-channel.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-DI-300 and cFP-DI-300 Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is FP-DI-300 the same mounting format as cFP-DI-300?

No. FP-DI-300 uses an FP-TB-x terminal base; cFP-DI-300 uses a Compact FieldPoint backplane.

Is a signal between 5 and 15 V a defined logic state?

No. In this interval, the input may register ON or OFF.
