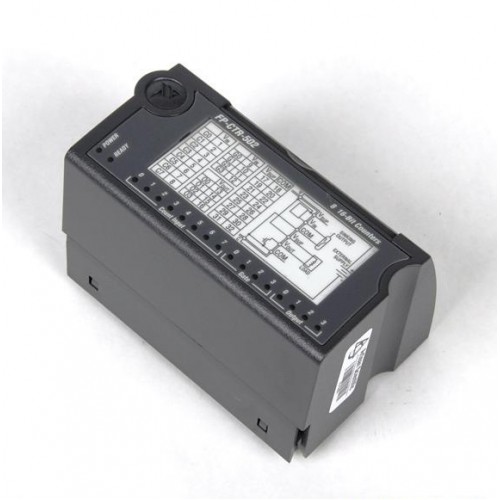

The NI FP-CTR-502 is an eight-channel, 16-bit FieldPoint counter module with sourcing inputs and sinking outputs.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Mounts on an FP-TB-x terminal base; network access depends on the FieldPoint network module.
Verified product specifications.
| Input type | 5–30, sourcing VDC |
|---|---|
| Count-input bandwidth | 50; 0.2 with lowpass filter kHz |
| Maximum output current per channel | 1 A |
| Power from network module | 800 mW |
| Operating temperature | −40 to 70 °C |
| Weight | 143 g |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Distributed I/O platform
Counter module
Sourcing inputs accept sinking-output devices.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. There is no channel-to-channel isolation.
No. FP-CTR-502 uses a terminal base; cFP-CTR-502 uses a Compact FieldPoint backplane.
