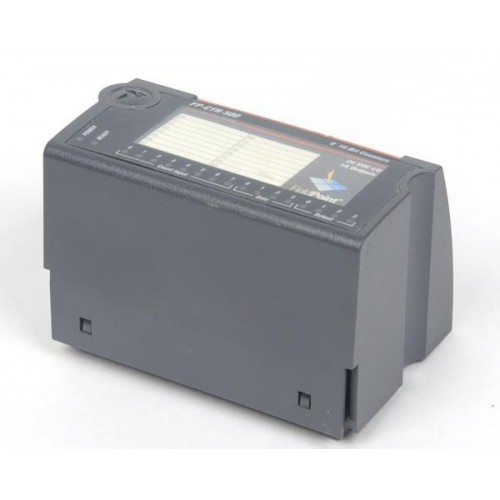

The National Instruments FP-CTR-500 is a FieldPoint counter module with configurable count sources, gate control, and output modes.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Count-source selection includes the external count input, the previous channel, or an internal reference. Output sources can be counter channels or discrete data.
Verified product specifications.
| Count range | 0–65535 counts |
|---|---|
| Internal count references | 1 and 32 kHz |
| Noise-rejection settings | 200 Hz or 50 kHz |
| Output modes | Toggle/reset off; toggle/reset on; on pulse; off pulse |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Distributed I/O platform
Counter module
NI's archived notice warns against connecting the FP-CTR-500/502 to an FP-3000 with the firmware covered by that notice. Confirm firmware-specific support before considering that combination.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
External count input, previous channel, 1 kHz reference, or 32 kHz reference.
NI's archived compatibility notice specifies FieldPoint Explorer or FieldPoint Server version 1.7 or later for the FP-CTR-500/502. This historical minimum does not establish compatibility with a particular operating system.
