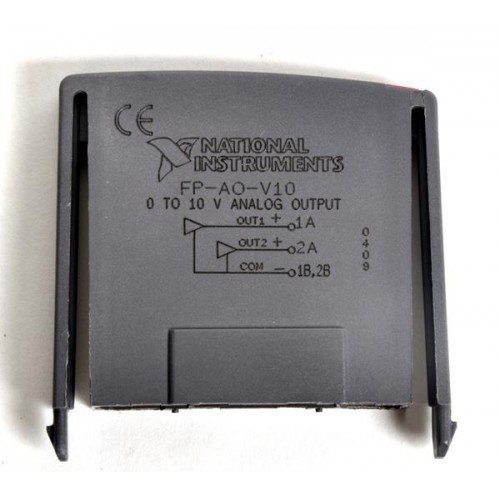

National Instruments FP-AO-V10 Analog voltage output module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-AO-V10

The FP-AO-V10 provides two 0–10 V, 12-bit outputs.

ManufacturerNational Instruments

ModelFP-AO-V10

Product TypeAnalog voltage output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-AO-V10

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels2 single-ended

Range0–10 V

Resolution12 bits

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Mounts on the FP-TB-10 terminal base within a FieldPoint system.

10 mA output drive per channel.
10 Ω output impedance.
Channels share the b-terminal reference.

Verified specifications

Technical data

Verified product specifications.

Outputs	2 single-ended
Output range	0–10 V
Resolution	12 bits
Voltage resolution	2.4 mV
Accuracy at 25 °C	0.06 %
Output impedance	10 Ω
Output drive per channel	10 mA

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint / FP-TB-10

Platform and terminal base

FP-AO-V10

Voltage output

Compatibility

Uses the FP-TB-10 terminal base.

Channels are not mutually isolated; output loading introduces voltage error.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this the bipolar model?

No. FP-AO-V10 is 0–10 V; FP-AO-V10B is ±10 V.
