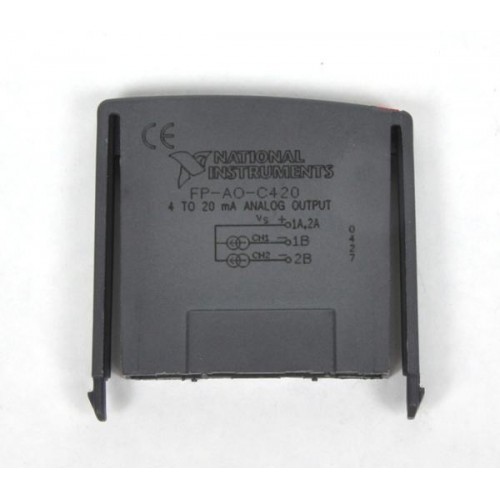

National Instruments FP-AO-C420 Analog current output module
1 image: Click to enlarge
National Instruments · FieldPoint

FP-AO-C420

The NI FP-AO-C420 provides two 4–20 mA outputs for FieldPoint systems.

ManufacturerNational Instruments
ModelFP-AO-C420
Product TypeAnalog current output module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-AO-C420

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels2 single-ended
Resolution12-bit
Maximum load500 Ω
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The module mounts on an FP-TB-10 terminal base, powered through the FieldPoint backplane.

  • Internal loop power.
  • Shared channel reference.
  • Same-type live module replacement.
Verified specifications

Technical data

Verified product specifications.

Output range4–20 mA
Output resolution3.9 µA
Accuracy at 25 °C0.1 %
Power requirement1100 mW
Operating temperature−20 to +70 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint / FP-TB-10

Platform / terminal base

FP-AO-C420

Current output

Compatibility

FP-TB-10 supports up to six dual-channel modules.

Channels are not mutually isolated; use one channel per module when channel-to-channel isolation is required.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How are outputs wired?

Current leaves the common “a” terminals and returns through “b”.

What determines update timing?

FP-TB-10 scan composition and network-module timing.
