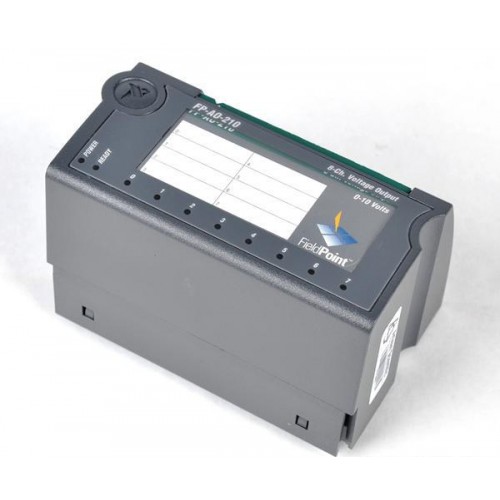

The NI FP-AO-210 provides eight 12-bit, 0–10 V outputs for FieldPoint systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Mounts on an FP-TB-x terminal base; a FieldPoint network module sends output values.
Verified product specifications.
| Output channels | 8 single-ended |
|---|---|
| Resolution | 12 bit |
| Output range | 0–10; 0–10.2 with overranging V |
| Current drive | 1 mA sourcing/sinking; 10 mA sourcing with external supply |
| External supply | 15–30 VDC |
| Maximum conversion rate | 200 updates/s |
| Operating temperature | -40 to 70 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Distributed I/O platform
Voltage output
Mounts on FieldPoint FP-TB-x terminal bases.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Not for 1 mA operation; 10 mA sourcing requires a 15–30 VDC supply.
No. FP-AO-210 uses a terminal base; cFP-AO-210 uses a Compact FieldPoint backplane.
