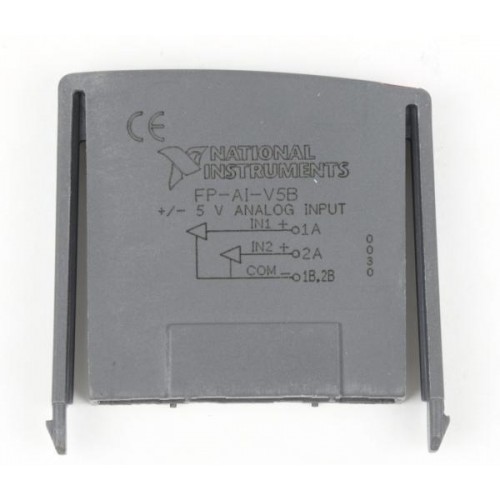

National Instruments FP-AI-V5B Analog voltage input module

1 image: Click to enlarge

National Instruments · FieldPoint

FP-AI-V5B

The FP-AI-V5B measures bipolar ±5 V signals through two single-ended channels.

ManufacturerNational Instruments

ModelFP-AI-V5B

Product TypeAnalog voltage input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: FP-AI-V5B

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels2

Range±5 V

Resolution12 bits

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Installed on an FP-TB-10, the module receives power through the FieldPoint local backplane.

Programmable 20 Hz or 2 kHz filtering.
2.2 MΩ input impedance.
±30 V input protection.

Verified specifications

Technical data

Verified product specifications.

Input range	−5 to +5 V
Measurement increment	2.44 mV
Power requirement	375 mW
Operating temperature	−20 to +70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

FieldPoint

Platform

FP-TB-10

Terminal base

Compatibility

Designed for the FP-TB-10 terminal base.

Channels share a common reference; they are not mutually isolated.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-TB-10 Terminal Base and Dual-channel FieldPoint Modules Operating InstructionsOperating Instructions · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

FieldPoint -- Modular Distributed I/O

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Are both inputs differential?

No. Both are single-ended and share the b-terminal reference.
