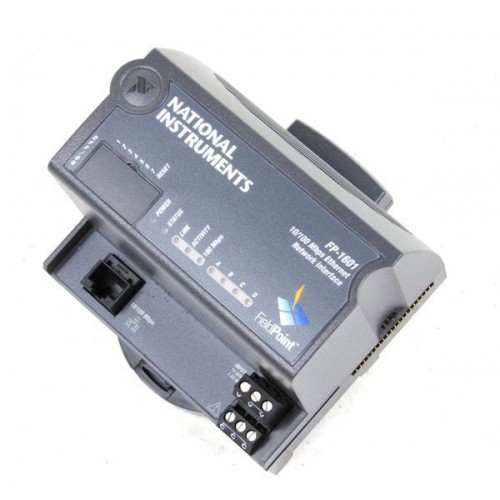

The FP-1601 connects a FieldPoint I/O bank to Ethernet.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The network module works with separate terminal bases and I/O modules. NI documents configuration through Measurement & Automation Explorer (MAX).
Verified product specifications.
| Network standard | IEEE 802.3 |
|---|---|
| Maximum segment length | 100 m |
| Maximum terminal-base power | 9 W |
| Recommended supply, up to five modules | 15 W |
| Recommended supply, six to nine modules | 20 W |
| Operating temperature | −25 to 55 °C |
| Weight | 235 g |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular I/O platform
Ethernet interface
FP-PS-4 is a documented supply option, subject to the bank power requirements.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It is the network interface; measurement connections use separate I/O modules and terminal bases.
