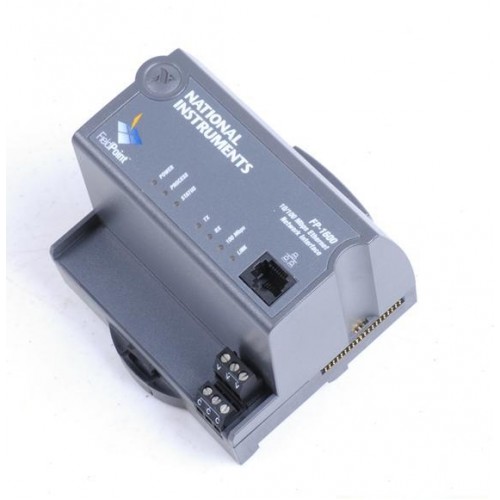

The National Instruments FP-1600 connects a FieldPoint I/O bank to an Ethernet network using TCP/IP. It supports up to nine I/O modules.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The FP-1600 is the network interface for a modular FieldPoint bank. Terminal bases connect through its local bus; separate I/O modules provide the field connections.
NI's quick start guide covers Ethernet setup, IP configuration, live input monitoring, and output writes through FieldPoint Explorer.
Verified product specifications.
| Ethernet interface | 10BaseT and 100BaseTX |
|---|---|
| Network standard | IEEE 802.3 |
| Communication rates | 10 or 100, autonegotiated Mbps |
| Maximum cable length | 100 m |
| Supply voltage | 11–30 VDC |
| Maximum terminal bases per bank | 9 |
| Power requirement | 7 W + 1.15 × sum of I/O module power requirements |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular I/O platform
Ethernet network interface
Connects to FieldPoint terminal bases through the local bus.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It is a network module; field signals connect through separate FieldPoint I/O modules and terminal bases.
NI documents a direct connection using an Ethernet crossover cable.
It powers I/O electronics, but field devices and some module outputs require external power. Follow the individual I/O module instructions.
