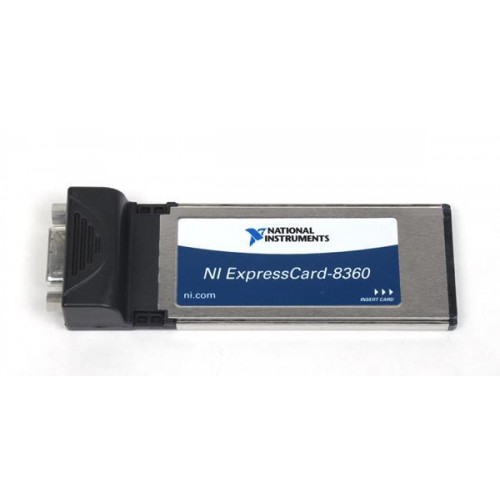

National Instruments EXPRESSCARD-8360 MXI ExpressCard device for PXI remote control

1 image: Click to enlarge

National Instruments · PXI / PXI Express remote control

EXPRESSCARD-8360

Name: EXPRESSCARD-8360
Brand: National Instruments

The NI ExpressCard-8360 is a host interface for controlling compatible PXI or PXI Express systems from a laptop or supported ExpressCard-equipped computer. It provides a software-transparent MXI-Express x1 connection over copper cable.

ManufacturerNational Instruments

ModelEXPRESSCARD-8360

Part Number779507-01

Product TypeMXI ExpressCard device for PXI remote control

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: EXPRESSCARD-8360

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host connectionExpressCard

Remote linkMXI-Express x1 over copper

MXI ports1

Host slot sizeExpressCard/34 or ExpressCard/54

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This adapter forms the computer-side connection in an ExpressCard MXI system. NI documents configurations using a PXI-8360 in a PXI/cPCI chassis or a PXIe-8360 in a PXIe/cPCIe chassis, connected to the host adapter by an ExpressCard MXI cable.

The remote link is transparent to applications and drivers, allowing the host to control connected instruments without additional link-specific programming. Select the chassis interface and cable for the intended system before installation.

Software-transparent remote control of compatible PXI and PXI Express systems.
Single copper MXI-Express x1 port.
Fits a 34 mm or 54 mm ExpressCard slot.
Documented maximum cable length of 7 m.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	779507-01
Bus connection	ExpressCard
MXI communication level	MXI-Express x1
Supported cable type	Copper
Number of MXI ports	1
Slot requirements	One 34 mm or 54 mm ExpressCard slot
ExpressCard standard	PCMCIA ExpressCard Standard, Revision 1.0
Dimensions	10.2 × 3.4 cm
Typical weight	0.03 kg
Maximum cable length	7 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

ExpressCard host

Computer-side slot for the ExpressCard-8360

ExpressCard-8360

Host-side MXI-Express interface

PXI-8360 or PXIe-8360

Chassis-side interface for the corresponding PXI or PXI Express system

Confirm the host slot, chassis interface, cable, and software requirements. The ExpressCard-8360B for USRP-RIO is a different variant.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI ExpressCard-8360 Product PageProduct Page · ni.com

Open →

MXI-Express x1 User ManualUser Manual And Specifications · docs-be.ni.com

Open →

Set Up Your MXI-Express x1 SystemSetup Guide · download.ni.com

Open →

MXI Express Control of PXI with a Laptop and a PCTechnical resource

Open →

MXI-Express Hardware and BIOS Compatibility SoftwareTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which laptop slot does the ExpressCard-8360 require?

It requires an ExpressCard/34 or ExpressCard/54 slot.

What chassis-side hardware is used with this adapter?

NI documents a PXI-8360 in the controller slot of a PXI/cPCI chassis or a PXIe-8360 in a PXIe/cPCIe chassis, connected by an ExpressCard MXI cable.

Is the ExpressCard-8360 the same as the ExpressCard-8360B?

No. NI identifies the ExpressCard-8360B as a modified USRP-RIO interface and states that it cannot be used to detect general PXI modules in the same way as the ExpressCard-8360.
