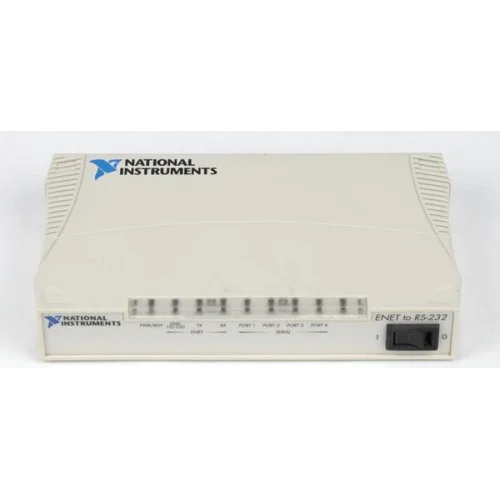

National Instruments ENET-232/4 Four-port RS-232 serial device server

1 image: Click to enlarge

National Instruments · Ethernet serial connectivity

ENET-232/4

Name: ENET-232/4
Brand: National Instruments

The NI ENET-232/4 is a four-port RS-232 serial device server for accessing serial equipment over Ethernet. Its legacy software requirements should be checked against the intended host system before integration.

ManufacturerNational Instruments

ModelENET-232/4

Product TypeFour-port RS-232 serial device server

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: ENET-232/4

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Serial ports4 RS-232 ports

Network connection10/100 Ethernet, RJ-45, half duplex

Serial connectionDB-9, DTE

Maximum serial transfer rate230.4 kb/s

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The ENET-232/4 provides network access to four point-to-point RS-232 connections. It belongs to NI's ENET-232 serial server family rather than the Compact FieldPoint module platform.

Software selection is important for this legacy interface: NI-Serial 14.0 removed support for NI Serial ENET devices. NI also documents a version-dependent NI-VISA access method for previously configured devices.

Four RS-232 ports for network-accessible serial communication.
10BaseT and 100BaseT Ethernet connectivity through an RJ-45 connector.
DB-9 serial connectors with DTE port configuration.

Verified specifications

Technical data

Verified product specifications.

Number of serial ports	4 ports
Serial protocol	RS-232
Maximum serial transfer rate	230.4 kb/s
Serial connector	DB-9
RS-232 port type	DTE
Ethernet connection	IEEE 802.3; 10BaseT and 100BaseT
Ethernet connector	RJ-45
Ethernet duplex mode	Half duplex
Operating temperature	-40 to 70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

ENET-232 Series

Ethernet-connected RS-232 serial server family

ENET-232/4

Four-port serial device server

Software support boundary

NI-Serial 14.0 removed ENET-232/4 support.

Verify host OS and driver-version support; do not assume current NI-Serial supports this interface.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

ENET-232 Series and ENET-485 Series User Manual for Windows NT 4.0Archived User Manual And Specifications · download.ni.com

Open →

Can I Use the ENET-232 or ENET-485 on Systems with VISA Support Only?Archived Support Article · knowledge.ni.com

Open →

NI-Serial 17.0 for Windows ReadmeDriver Readme Documenting ENET Support Removal · download.ni.com

Open →

NI-VISA access and serial resource naming for ENET devicesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does NI-Serial 14.0 support the ENET-232/4?

No. NI states that NI-Serial 14.0 removed support for all NI Serial ENET interfaces, including the ENET-232/4.

How are serial ports addressed through NI-VISA?

NI documents the resource format ASRL::IPAddress::PortNumber::INSTR, with ENET-232/4 ports numbered 1 through 4. The device must first be configured and assigned an IP address from a system with suitable NI-Serial support. Check the intended NI-VISA version's readme for compatibility.

What is the maximum RS-232 transfer rate?

The archived manufacturer manual specifies 230.4 kb/s. Actual throughput depends on the system, network, and connected instrumentation.
