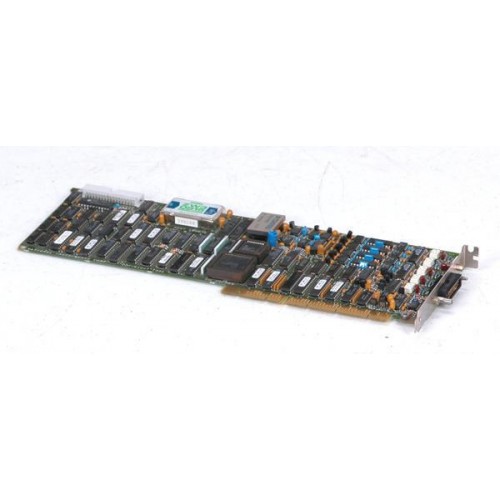

The National Instruments EISA-A2000 is a legacy dynamic signal acquisition device with four single-ended analog inputs, 12-bit resolution, and a ±5 V input range.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
NI classifies the EISA-A2000 under dynamic signal acquisition devices. Its analog input capabilities include digital or analog triggering, pretrigger and posttrigger acquisition, and DMA or interrupt-based transfers.
Software selection is critical for an existing system: NI identifies NI-DAQ 4.9.0 as the last release supporting the EISA-A2000. Later NI-DAQ releases should not be assumed to support this hardware.
Verified product specifications.
| Analog input channels | 4 single-ended |
|---|---|
| Analog input resolution | 12 bits |
| Analog input range | ±5 V |
| Maximum sampling rate listed by NI | 1000000 S/s |
| Data-transfer methods | DMA; interrupts |
| Supported scan lists | (0), (1), (2), (3), (0, 1), (2, 3), (0, 1, 2, 3) |
| Last supporting NI-DAQ release | 4.9.0 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Documented hardware category
Acquisition device
NI-DAQ 4.9.0 is the final supporting release identified by NI.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI lists NI-DAQ 4.9.0 as the final supporting release and instructs users to use that version or an earlier supporting version.
No. NI documents these scan lists: individual channels 0, 1, 2, or 3; pairs (0, 1) or (2, 3); and all four channels (0, 1, 2, 3).
The archived LabVIEW reference explicitly lists the EISA-A2000 among Windows devices that do not support nonbuffered acquisitions.
