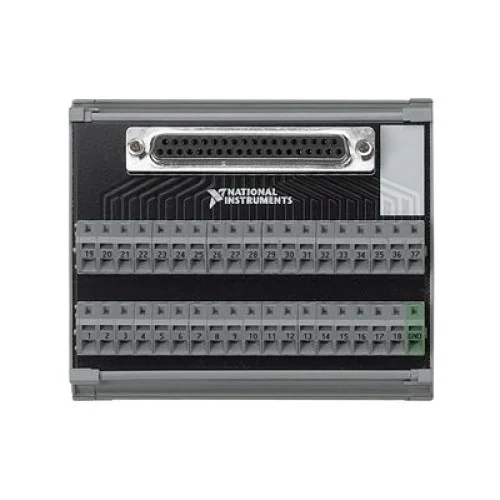

DIN-Rail Mount Terminal Block for 37-Pin D-SUB Modules

NI 778676-01 is the spring-terminal variant of the CB-37FH horizontal DIN-rail terminal block for 37-pin D-SUB connections.

ManufacturerNational Instruments

ModelDIN-Rail Mount Terminal Block for 37-Pin D-SUB Modules

Part Number778676-01

Product TypeSpring terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DIN-Rail Mount Terminal Block for 37-Pin D-SUB Modules

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Part number778676-01

Connection37-pin female D-SUB

Field terminalsSpring terminals

MountingHorizontal DIN rail

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This accessory provides field-wiring access for supported NI devices. NI's C Series accessory guide identifies 778676-01 as the horizontal spring-terminal option for listed 37-pin D-SUB modules.

Unshielded construction.
Connections for 37 I/O signals.
Mounts in line with the DIN rail.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	778676-01
Device-side connector	37-pin female D-SUB
Terminal type	Spring
Mounting	Horizontal DIN rail
Wire gauge range	12–30 AWG

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

37-pin D-SUB C Series connectivity

Supported module accessory interface

778676-01

Horizontal DIN-rail spring terminal block

Compatibility

NI lists 778676-01 for 37-pin D-SUB configurations of modules including NI 9205, NI 9403, NI 9425 and NI 9476. Consult the guide for the appropriate cable and exact module configuration.

Check the exact module variant, cable and signal pinout in NI's accessory guide before wiring.
