National Instruments DIN-Rail Mount Terminal Block for 25-Pin D-SUB Modules DIN-rail screw-terminal block

1 image: Click to enlarge

National Instruments · CompactDAQ / CompactRIO

DIN-Rail Mount Terminal Block for 25-Pin D-SUB Modules

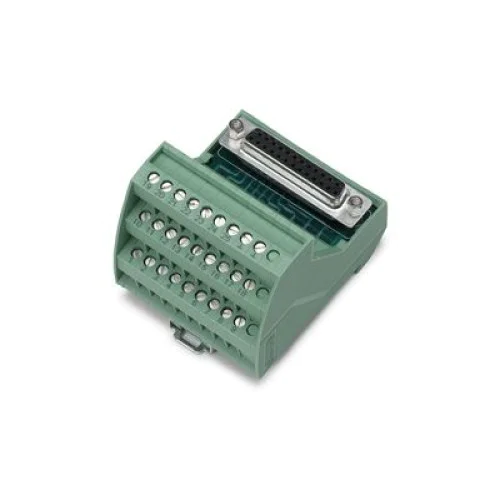

The NI 781081-01 is a DIN-rail terminal block that connects a 25-pin female D-SUB interface to screw terminals. NI identifies it as the 25-Pin D-SUB to Screw Terminal accessory for CompactDAQ and CompactRIO systems.

ManufacturerNational Instruments

ModelDIN-Rail Mount Terminal Block for 25-Pin D-SUB Modules

Part Number781081-01

Product TypeDIN-rail screw-terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DIN-Rail Mount Terminal Block for 25-Pin D-SUB Modules

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

NI part number781081-01

Connector25-pin female D-SUB

Wire terminationScrew terminals

MountingHorizontal DIN-rail mount

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This accessory provides screw-terminal wiring connections in a DIN-rail format rather than serving as a measurement module. NI's official product designation is 25-Pin D-SUB to Screw Terminal.

NI lists this block for selected C Series D-SUB modules. A cable is required between the module and the DIN-rail terminal block; select the cable using the module-specific accessory guide.

25-pin female D-SUB connection.
Screw-terminal wire termination.
Horizontal DIN-rail mounting configuration.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	781081-01
D-SUB connector	25-pin female
Termination type	Screw terminal
Mounting configuration	DIN rail, horizontal mount

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Measurement-system platforms

781081-01

DIN-rail D-SUB-to-screw-terminal accessory

Compatibility

Listed for the 25-pin D-SUB versions of NI-9201, NI-9221, NI-9401, NI-9421, NI-9472 and NI-9475.

Use the module-specific NI accessory guide to confirm the cable and connection arrangement; this is not a direct front-mount terminal block.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

25-Pin D-SUB to Screw TerminalOfficial Product Page · ni.com

Open →

C Series with D-Sub Terminal: I/O Cable & Accessory GuideCompatibility And Accessory Guide · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the official NI designation for this terminal block?

NI calls part number 781081-01 the 25-Pin D-SUB to Screw Terminal.

Which D-SUB C Series modules does NI list for this block?

NI lists NI-9201, NI-9221, NI-9401, NI-9421, NI-9472 and NI-9475 in the 25-pin D-SUB accessory table.

Is a separate connection cable required?

Yes. NI states that DIN-rail terminal blocks require a cable. The 25-pin D-SUB table lists SH25F-25M, part number 192568-01, and SHDB25F-DB25M Low Profile, part number 154742-01.
