DAQPAD-MIO-16XE-50
1 image: Click to enlarge
National Instruments · DAQPad

DAQPAD-MIO-16XE-50

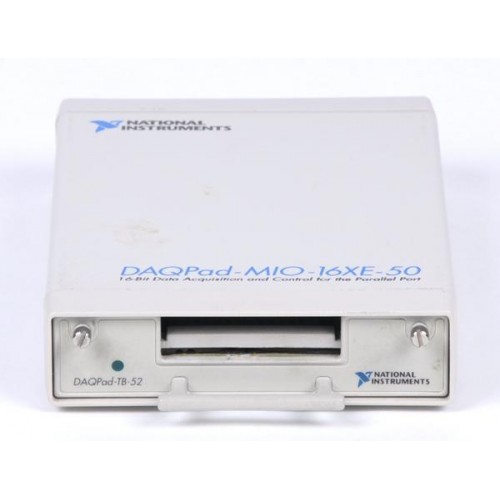

The National Instruments DAQPad-MIO-16XE-50 is a 16-bit parallel-port data acquisition and control device. NI also identifies this legacy model as DAQPad-6011E.

ManufacturerNational Instruments
ModelDAQPAD-MIO-16XE-50
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQPAD-MIO-16XE-50

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host connectionParallel port
Analog inputs16 single-ended or 8 differential
Input resolution16-bit
Maximum sampling rate20 kS/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This DAQPad belongs to NI's legacy parallel-port device group, rather than its USB or IEEE 1394 groups. Host-interface and software requirements should be checked before integrating it into an existing system.

NI's archived support matrix lists Traditional NI-DAQ 6.9.3 for Windows 2000, NT, 98/Me, and 95 for this model, but marks Windows XP unsupported.

  • Software-selectable analog input configuration.
  • Two analog output channels.
  • Eight digital I/O lines.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
ADC resolution16 bit
Maximum sampling rate20 kS/s
Bipolar input ranges±10, ±5, ±1, ±0.1 V
Unipolar input ranges0–10, 0–5, 0–1, 0–0.1 V
Input couplingDC
Analog output channels2
Digital I/O lines8
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Legacy parallel-port DAQPad

Platform and host interface

DAQPad-MIO-16XE-50

Data acquisition and control device

Alternate NI designation

DAQPad-6011E

Check the archived operating-system and driver matrix before selecting a host computer.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

DAQPad-MIO-16XE-50 User ManualUser Manual · download.ni.com
Open →
Traditional NI-DAQ and DAQmx Driver Support: Legacy Portable DevicesArchived Driver Compatibility Reference · ni.com
Open →
Signal Wiring and Specifications: DAQPad-MIO-16XE-50 User ManualTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this a USB DAQPad?

No. NI identifies the DAQPad-MIO-16XE-50 as a parallel-port device.

Does NI list Windows XP support?

No. NI's archived compatibility matrix marks Windows XP unsupported for DAQPad-6011E, the alternate designation for this model.

Which terminal block is documented for signal connections?

The manual describes the detachable DAQPad-TB-52 with 52 screw terminals. Inclusion with this catalog item is not established.
