DAQPAD-6052E (BNC)

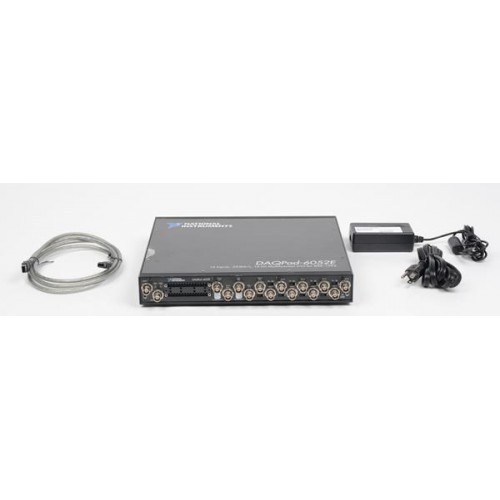

1 image: Click to enlarge
National Instruments · DAQPad

DAQPAD-6052E (BNC)

The National Instruments DAQPad-6052E (BNC) is an IEEE 1394 E Series multifunction data acquisition device with 16-bit analog input and a maximum sampling rate of 333 kS/s. This version provides 15 BNC connectors and 30 removable screw terminals.

ManufacturerNational Instruments
ModelDAQPAD-6052E (BNC)
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQPAD-6052E (BNC)

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog input16 single-ended or 8 differential channels
Acquisition16-bit resolution; up to 333 kS/s
Host interfaceIEEE 1394
Signal connections15 BNC connectors and 30 removable screw terminals
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The DAQPad-6052E brings E Series acquisition to an external IEEE 1394 device. Its analog inputs support software-selectable single-ended or differential configuration, with a 16-bit successive-approximation ADC.

The BNC version uses a different signal-connection arrangement from the 68-pin SCSI-II version. NI provides a dedicated DAQPad-6052E BNC pinout in the family specifications. Software integration requires attention to Traditional NI-DAQ support rather than assuming NI-DAQmx compatibility.

  • 16-bit analog acquisition at rates up to 333 kS/s.
  • Software-selectable single-ended and differential analog input configurations.
  • BNC and removable screw-terminal signal access.
  • External IEEE 1394 host connection.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
Analog input resolution16 bit
Maximum analog input sampling rate333 kS/s
Input couplingDC
BNC-version signal connections15 BNC connectors and 30 removable screw terminals
Host interfaceIEEE 1394
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

DAQPad / IEEE 1394

External acquisition platform and host interface

DAQPad-6052E BNC

E Series multifunction DAQ device with BNC signal connections

Driver family

Traditional NI-DAQ (Legacy); NI-DAQmx does not support this device.

Confirm the IEEE 1394 host, operating system and Traditional NI-DAQ version before integration; use the BNC-specific pinout.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6052E Family SpecificationsSpecifications And BNC Pinout · download.ni.com
Open →
NI-DAQ 8.0.1 ReadmeDriver Support Reference · download.ni.com
Open →
NI-DAQ 6.9.3 ReadmeIEEE 1394 Device Notes · download.ni.com
Open →
DAQPad-6052E BNC pinout — Figure 2Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the DAQPad-6052E BNC connect through USB?

No. The DAQPad-6052E uses IEEE 1394 for its host connection; BNC refers to its signal connections.

Does NI-DAQmx support this device?

NI lists the DAQPad-6052E among devices restricted to Traditional NI-DAQ (Legacy), not NI-DAQmx.

Where is the BNC-version pinout documented?

Figure 2 of the NI 6052E Family Specifications provides the DAQPad-6052E BNC pinout.
