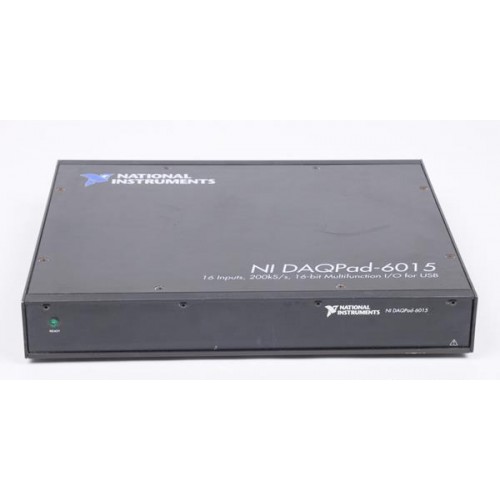

The National Instruments DAQPad-6015 is a USB multifunction data acquisition device for acquiring, generating, and logging signals in portable and desktop systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The DAQPad-6015 combines analog acquisition, voltage output, digital I/O, and two counter/timers in an external USB device. NI's model guide positions it for portable and desktop measurement systems.
NI offered screw-terminal, BNC, and mass-termination configurations. The supplied catalog record does not identify the connector configuration, so confirm the physical unit before selecting cables or signal-conditioning accessories.
The DAQPad-6015 combines analog acquisition, voltage output, digital I/O, and counter functions through a USB connection. NI documents it for portable and desktop measurement applications.
NI documents screw-terminal, BNC, and mass-termination DAQPad-6015 versions. Confirm the physical connection variant before selecting cables or signal-conditioning accessories.
Verified product specifications.
| Analog input configuration | 16 single-ended or 8 differential |
|---|---|
| Analog input resolution | 16 bit |
| Maximum analog input sampling rate | 200 kS/s |
| Bipolar input ranges | ±10, ±5, ±0.5, ±0.05 V |
| Analog output channels | 2 |
| Analog output resolution | 16 bit |
| Analog output range | ±10 V |
| Digital I/O lines | 8 |
| Counter/timers | 2 |
| Analog input channels | 16 single-ended or 8 differential |
| ADC resolution | 16 bits |
| Maximum sampling rate | 200 kS/s |
| Analog input ranges | ±10, ±5, ±0.5, ±0.05 V |
| Analog outputs | 2 channels; 16-bit; ±10 V |
| Analog output update rate | Software timed: 300 S/s; hardware timed: 50 S/s; both system dependent |
| Digital I/O | 8 lines; 5 V TTL/CMOS |
| External power requirement | 9–25 V; 12 W |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
External multifunction DAQ
NI-DAQmx; verify the specific driver release and host OS.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Its readme lists DAQPad-6015 variants as supported on 32-bit Windows 10, 8.1, and 7, but not on the corresponding 64-bit versions. This is release-specific historical evidence, not confirmation of support in current drivers.
NI's model guide lists eight digital I/O lines for the DAQPad-6015 and 32 for the DAQPad-6016. Both have 16-bit analog inputs rated up to 200 kS/s.
The DAQPad-6015 has eight digital I/O lines; the DAQPad-6016 has 32.
