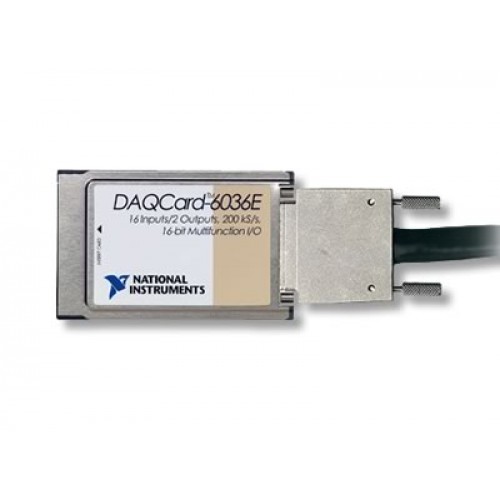

National Instruments DAQCard-6036E Multifunction data acquisition card
1 image: Click to enlarge
National Instruments · PCMCIA

DAQCard-6036E for PCMCIA (Legacy)

The National Instruments DAQCard-6036E is a PCMCIA E Series multifunction data acquisition card. It provides 16-bit analog input at up to 200 kS/s, two analog outputs, eight digital I/O lines and two counter/timers.

ManufacturerNational Instruments
ModelDAQCard-6036E
Product TypeMultifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQCard-6036E

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCMCIA
Analog input16 channels, 16-bit
Maximum sampling rate200 kS/s
Analog output2 channels
Digital and timing I/O8 digital I/O lines; 2 counter/timers
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This card combines analog acquisition, voltage output, digital I/O and counter/timer functions in the PCMCIA E Series platform.

Analog inputs support 16 single-ended or eight differential channels. Software-selectable bipolar ranges cover ±10 V, ±5 V, ±500 mV and ±50 mV.

  • 16-bit analog acquisition with a maximum sampling rate of 200 kS/s.
  • Two analog output channels alongside eight digital I/O lines.
  • Two counter/timers for timing I/O.
  • 1,024-sample analog input FIFO.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration16 single-ended or 8 differential
Analog input resolution16 bit
Maximum analog input sampling rate200 kS/s
Bipolar input ranges±10 V, ±5 V, ±500 mV, ±50 mV
Analog input FIFO1024 samples
Analog output channels2 channels
Analog output resolution16 bit
Analog output range±10 V
Digital I/O8 lines; 5 V TTL/CMOS
Counter/timers2 up/down counters, 24-bit
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCMCIA E Series

Host interface and DAQ family

DAQCard-6036E

Multifunction DAQ card

Compatibility

NI-DAQ 7.3 documents support for this model in both NI-DAQmx and Traditional NI-DAQ; this is historical, release-specific support.

Check the exact host interface, driver version and operating system before integration; historical driver support does not establish current-system compatibility.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6034E/6035E/6036E Family SpecificationsSpecifications · download.ni.com
Open →
NI-DAQ 7.3 ReadmeHistorical Driver Support · download.ni.com
Open →
NI-DAQmx Base 1.0 ReadmeHistorical Platform And Software Support · download.ni.com
Open →
Archived NI 60xx/60xxE Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
DAQCard-6024E for PCMCIA (Legacy)View product →
Related model
DAQCard-6062E for PCMCIA (Legacy)View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does this card provide analog outputs?

Yes. It has two 16-bit voltage outputs with a ±10 V range.

Which historical NI drivers list this model?

NI-DAQ 7.3 lists the DAQCard-6036E under devices supported by both NI-DAQmx and Traditional NI-DAQ. Verify support for the specific driver release and operating system you intend to use.
