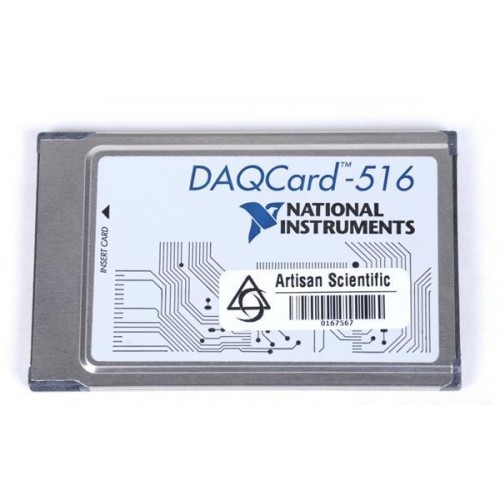

National Instruments DAQCARD-516 Multifunction data acquisition card
1 image: Click to enlarge
National Instruments · PCMCIA / PC Card

DAQCARD-516

The National Instruments DAQCard-516 is a legacy PCMCIA multifunction data acquisition card. It requires NI-DAQ 6.9.x or earlier rather than NI-DAQmx or Traditional NI-DAQ 7.x.

ManufacturerNational Instruments
ModelDAQCARD-516
Product TypeMultifunction data acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: DAQCARD-516

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCMCIA / PC Card
Analog inputs8 single-ended or 4 differential
Input resolution16-bit
Maximum sampling rate50 kS/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The DAQCard-516 belongs to NI's legacy PC Card data acquisition hardware. Software selection is important: NI explicitly lists this model among devices requiring NI-DAQ 6.9.x or earlier.

  • Selectable single-ended or differential analog input configuration.
  • Bipolar ±5 V analog input range.
  • 512-sample input FIFO.
Verified specifications

Technical data

Verified product specifications.

Analog input channels8 single-ended or 4 differential
Analog input resolution16 bit
Maximum sampling rate50 kS/s
Analog input range±5 V
Input FIFO capacity512 samples
Analog input triggerSoftware trigger only
Data transfer methodInterrupts
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCMCIA

Host interface

DAQCard-516

Multifunction DAQ card

Compatibility

NI's archived support table lists Traditional NI-DAQ 6.9.3 for Windows XP, 2000, NT, 98/Me, and 95 for the DAQCard-516.

Verify the host PC Card interface and operating-system/driver combination before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Function and VI Reference Manual — DAQ Hardware CapabilitiesReference Manual · download.ni.com
Open →
NI-DAQmx 8.1 Readme — Devices No Longer SupportedDriver Readme · download.ni.com
Open →
Traditional NI-DAQ and DAQmx Driver Support: Legacy Portable DevicesArchived Compatibility Reference · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
DAQCARD-500View product →
Related model
DAQCARD-1200View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the DAQCard-516 work with NI-DAQmx?

No. NI lists the DAQCard-516 as requiring NI-DAQ 6.9.x or earlier; it is not supported by NI-DAQmx or Traditional NI-DAQ 7.x.

How many analog inputs does the DAQCard-516 provide?

It supports 8 single-ended or 4 differential analog inputs with 16-bit resolution.
